Siemens 6ES7141-1BF40-0XB0 — Digital Input Modules

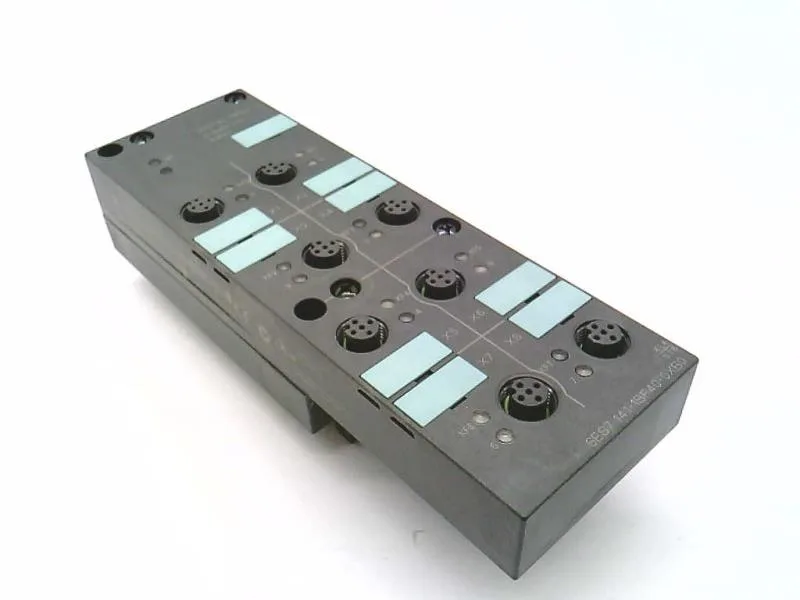

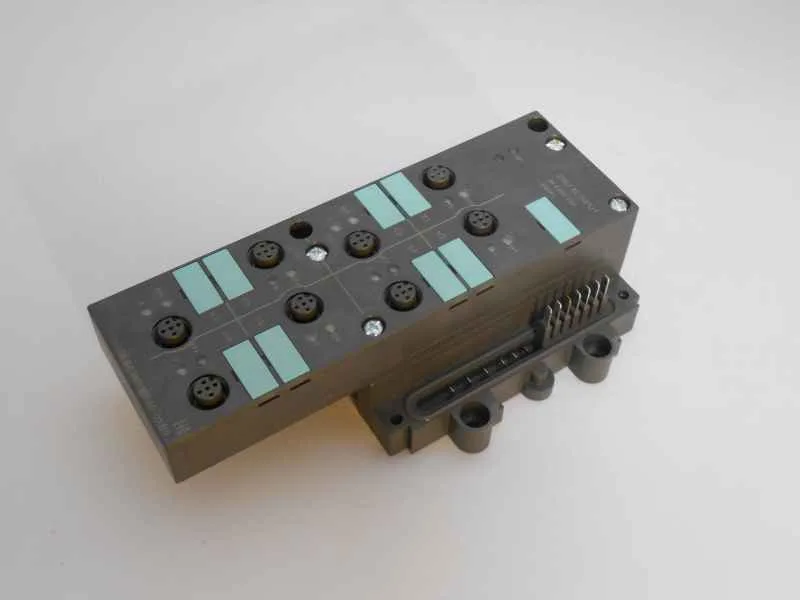

Siemens 6ES7141-1BF40-0XB0 EM141 8 DI 24 V DC M12

MPN6ES7141-1BF40-0XB0

Siemens SIMATIC DP, ET 200X Extended module EM141, 6ES7141-1BF40-0XB0, 8 digital inputs 24 V DC, 5-pole M12, parameterizable input delay 0.5/3/15/20 ms, channel diagnostics, wire-break and short-circuit detection.

$213.74Ref. price · indicative, final on quote
Siemens 6ES7141-1BF40-0XB0 datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

6ES7141-1BF40-0XB0 — Inputs
ParameterValue
Number of digital inputs8
Max. inputs, up to 40 °C0.5 A; Total current: 1 A
2-wire sensor supportYes
6ES7141-1BF40-0XB0 — Electrical
ParameterValue
Rated value (DC)24 V
Input voltage at signal "1"13 to 30V
Input voltage at signal "0"-3 to +5V
Input current at signal "1" (typ.)10 mA
Power loss (typ.)1.5 W
Current consumption from backplane bus (5 V DC), max.30 mA
Permissible quiescent current, 2-wire sensor, max.1.5 mA
Cable length, unshielded, max.30 m
6ES7141-1BF40-0XB0 — Timing
ParameterValue
Input delay, parameterizable valuesYes; 0.5 / 3 / 15 / 20 ms
6ES7141-1BF40-0XB0 — Diagnostics & Isolation
ParameterValue
Short-circuit protectionYes; Electronic
Diagnostics functionYes; Parameterizable
Short-circuit (NAMUR sensor)Yes; channel by channel
Diagnostic alarmYes; Parameterizable
Hardware interrupt supportYes; Parameterizable
Isolation test voltage500 V DC
Status indicator per channel (green)Yes
6ES7141-1BF40-0XB0 — Mechanical
ParameterValue
Depth55 mm
Height180 mm
Width87 mm; Width module 60 mm

Product details

What this module is

The Siemens 6ES7141-1BF40-0XB0 is the EM141 extended module for the ET 200X distributed I/O system, delivering 8 digital inputs rated at 24 V DC with M12 5-pole connectors. It accepts signal '1' from 13 to 30 V and signal '0' from -3 to +5 V, and the input delay is parameterizable to 0.5, 3, 15, or 20 ms via the backplane bus. Each input supports per-channel diagnostics: wire-break and short-circuit detection, along with a parameterizable hardware interrupt and diagnostic alarm. The module draws 30 mA from the 5 V DC backplane bus and dissipates 1.5 W.

Connection and integration notes

Permissible quiescent current is 1.5 mA; inputs are not potential-separated from the backplane. Maximum unshielded cable length is 30 m.

Frequently asked questions

What is the depth and width of this module?

Depth is 55 mm. Overall width is 87 mm, and the module width specifically is 60 mm.

Can the 6ES7148-4FC00-0AB0 serve as a direct drop-in replacement?

No. That ET 200SP module has different dimensions (90 x 130 x 65 mm versus 87 x 180 x 55 mm), uses a different backplane connection, and includes four additional outputs. A system redesign would be required.
