Siemens 6ES7142-5AF00-0BA0 — Digital Output Modules

Siemens 6ES7142-5AF00-0BA0 8-DO 2A IP65/67 SIL2

MPN6ES7142-5AF00-0BA0
Active

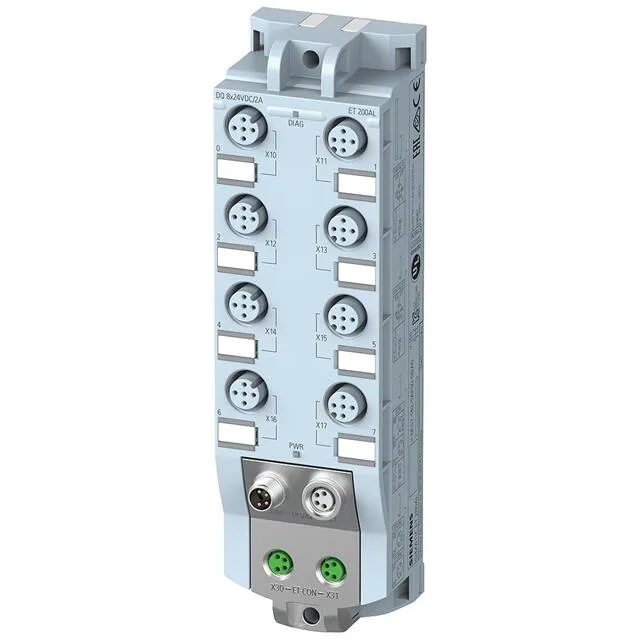

Siemens ET 200SP digital output module, 8 outputs, 2 A, IP65/67, M8, SIL 2.

$93.98Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026

Specifications

6ES7142-5AF00-0BA0 — Outputs
ParameterValue
Digital outputs8
6ES7142-5AF00-0BA0 — Electrical
ParameterValue
Rated value (DC)24 V
Output current, resistive load, max.100 Hz
Output current at signal "1" (rated)2 A
Output current, max. per circuit / per module2 A; with inductive load to IEC 60947-5-1, DC-13 / AC-15
Permissible range, upper limit (DC)28.8 V
Permissible range, lower limit (DC)20.4 V
Output voltage at signal "1" (min.)L+ (-0.8 V)
Residual current at signal "0", max.0.5 mA
Power dissipation (typ.)4 W
Inductive shutdown voltage clamp2L+ (-47 V)
Load resistance, upper limit4 kΩ
Load resistance, lower limit12 Ω
Isolation between channels and backplane busYes
Isolation, channels in groups of4
Isolation test voltage707 V DC (type test)
From load voltage 2L+, max.4 A; Maximum value
6ES7142-5AF00-0BA0 — Protection & Diagnostics
ParameterValue
Short-circuit protectionYes; per channel, electronic
Reverse polarity protectionYes; against destruction; load increasing
Diagnostic alarmYes; Parameterizable
Short-circuit response threshold (typ.)2.8 A
Short-circuit detectionYes; Outputs to ground; module by module
6ES7142-5AF00-0BA0 — Performance
ParameterValue
Switching frequency, inductive load, max.0.1 Hz; 0.25 Hz at 25 °C
Switching frequency, lamp load, max.1 Hz
6ES7142-5AF00-0BA0 — Mechanical & Connection
ParameterValue
Cable length, unshielded, max.30 m
Width45 mm
Height159 mm
Depth40 mm
Weight (approx.)192 g

Product details

Siemens 6ES7142-5AF00-0BA0 is an ET 200SP digital output slice with 8 outputs rated 2 A per channel, built for distributed I/O in washdown or harsh environments — IP65/67, M8 shielded connectors, and a -30 to 55 °C range. It's current production, so no last-time-buy scramble; we quote against your BOM line.

Each output switches 2 A continuous (resistive load at 100 Hz max; inductive loads at 0.1 Hz typical, 0.25 Hz at 25 °C). The module groups outputs in two load groups of four, with 4 A total per group — so if you're driving solenoids or contactors, keep the per-group draw under 4 A and no more than two inductive channels per group. Short-circuit protection is electronic and per channel, with a typical response threshold of 2.8 A. IP65/67 means it can live on-machine without a separate enclosure as long as the M8 connectors are tightened. The 707 V DC type-test isolation between channels and backplane means it sits comfortably on a 24 VDC supply with reverse polarity protection built in. Safety-rated at SIL 2 and Cat. 3, with parameterizable diagnostic alarms and substitute values per channel.

The cross-shop candidate 6ES7522-1BH01-0AB0 is a central rack module, not an IP65/67 remote slice. Connector type differs (M8 vs front connector) and mounting footprint is different. Use this part for IP65/67 on-machine placement.

Frequently asked questions

What are the operating temperature limits?

Rated for -30 °C to 55 °C ambient.

What connector type does it use?

M8, 4-pin, shielded; IP65/67 rated when mated.

MPN
6ES7142-5AF00-0BA0
