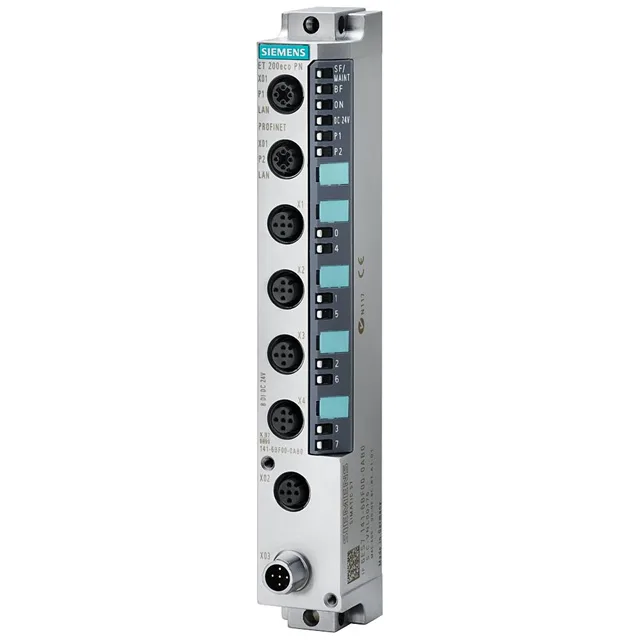

Siemens ET 200SP, 6ES7142-6BF00-0AB0, PROFINET interface module with integrated switch, MRP, SIL 2, IP65/67, 3.9 A at 55 °C.
| Parameter | Value |
|---|---|
| Max. inputs, up to 60 °C | 2.6 A |
| Parameter | Value |
|---|---|
| Rated value (DC) | 24 V |
| Permissible range, lower limit (DC) | 20.4 V |
| Permissible range, upper limit (DC) | 28.8 V |
| Power loss (typ.) | 5.5 W |
| Cable length, unshielded, max. | 30 m |
| Parameter | Value |
|---|---|
| Short-circuit protection | Yes |
| Diagnostics function | Yes |
| Short-circuit (NAMUR sensor) | Yes |
| Diagnostic alarm | Yes |
| Isolation between channels | No |
| Parameter | Value |
|---|---|
| Depth | 49 mm |
| Height | 200 mm |
| Width | 30 mm |

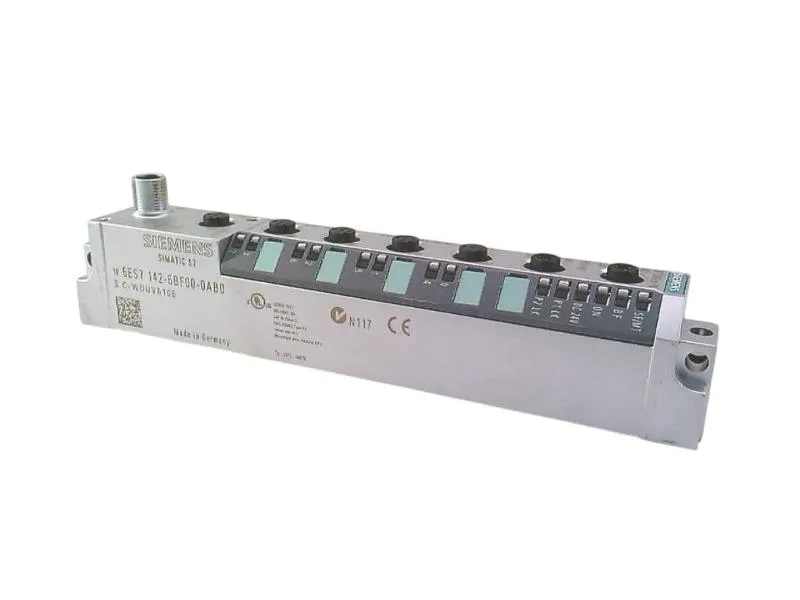

Siemens 6ES7142-6BF00-0AB0 ET 200SP PROFINET interface module with built-in 2-port switch, MRP, SIL 2, IP65/67. Module draws up to 3.9 A at 24 V DC, derating to 2.6 A.
Module has group error LED, diagnostic alarm, short-circuit protection (1.8 A threshold), SIL 2, prioritized startup, autocrossing/autonegotiation on 100BASE-TX.
