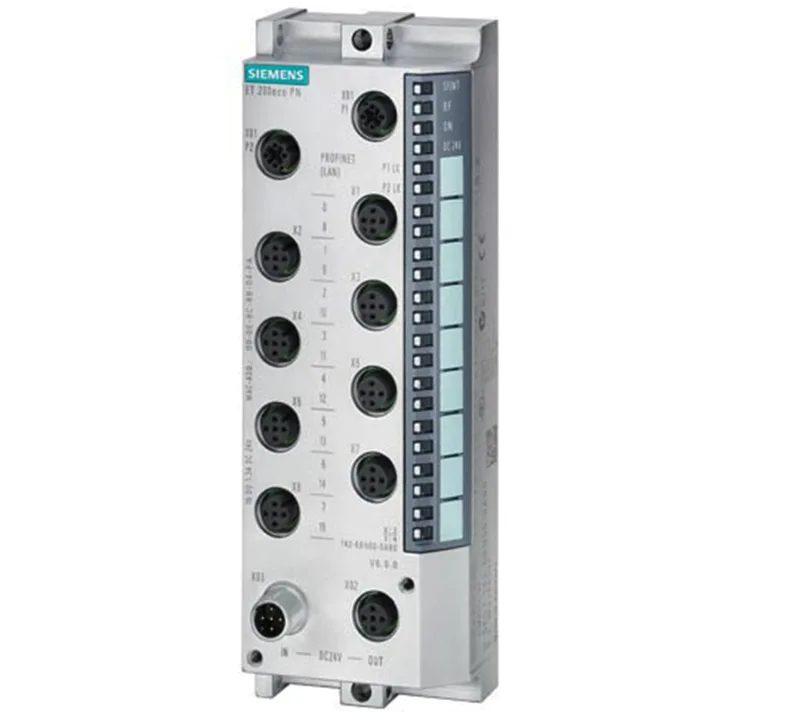

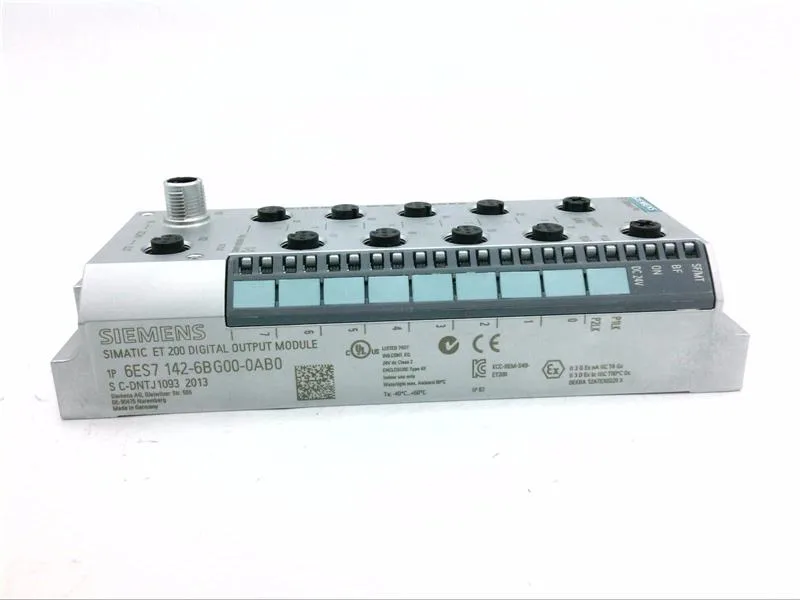

The 6ES7142-6BG00-0AB0: ET 200SP output slice with 8 digital outputs at 24 V DC on a PROFINET line. The integrated 2-port switch supports MRP for ring redundancy, and the IP65/67 housing lets it mount directly on the machine — no cabinet needed for dry, dusty, or washdown zones.
Integration note
Profiled for the ET 200SP mounting rack — 60 mm wide, 175 mm tall, 49 mm deep. Bus connection via the base unit (not included). The M12 power connector carries 24 V DC; backplane current draw is 100 mA typical. Power loss runs 5.5 W typical under full load. PROFINET IO device at 100 Mbit/s, supports ARP, DCP, LLDP, SNMP for network management, and MRP for ring topology. No TCP/IP or PROFIsafe on this module — safety is external. Set the device name via DCP in the engineering tool. The integrated switch eliminates an external switch for small ring networks.
