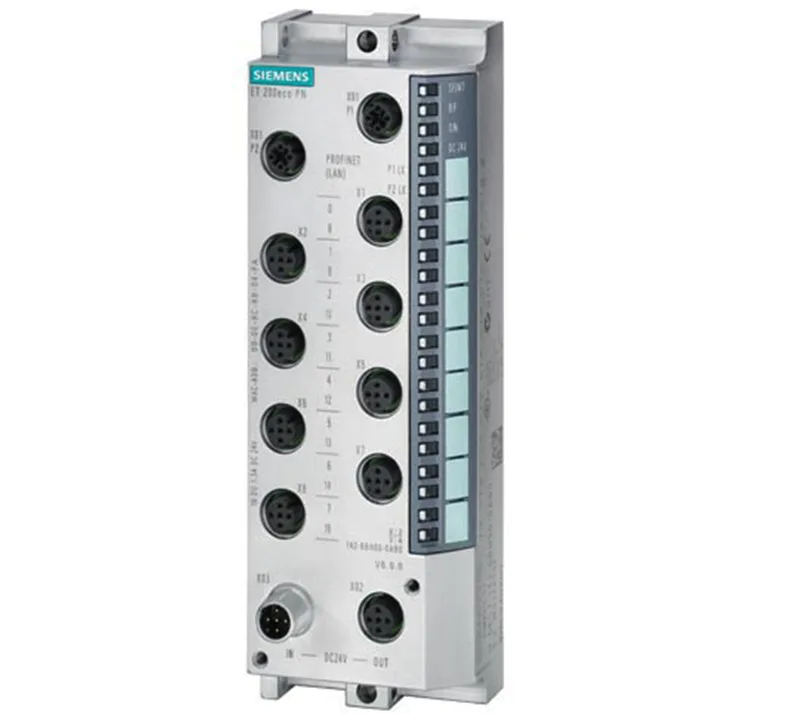

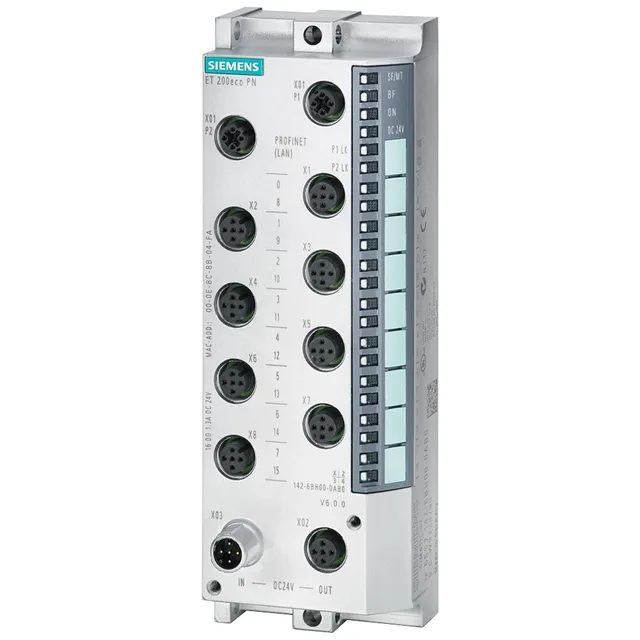

The 6ES7142-6BR00-0AB0: 8 digital outputs, 24 V DC. PROFINET IO device with integrated switch, MRP, ARP, DCP. SIL 2 rated. IP65/67. For ET 200SP distributed I/O. Current production, no EOL on the horizon.
Mounting & Wiring
60 mm wide, fits ET 200SP base units. Unshielded cable runs up to 30 m. Prioritized startup for quick line recovery. Diagnostic alarm and SF/MT LED. Output groups of 4 with isolation between groups and to the load voltage (type test 707 V DC). Short-circuit protection with typical response at 2.8 A; total load up to 3.9 A at 60 °C. Power loss typical 5 W.
PROFIsafe and PROFINET CBA are not supported — route safety functions through a separate F-CPU. No TCP/IP pass-through on this module; it's a pure PROFINET IO device.
