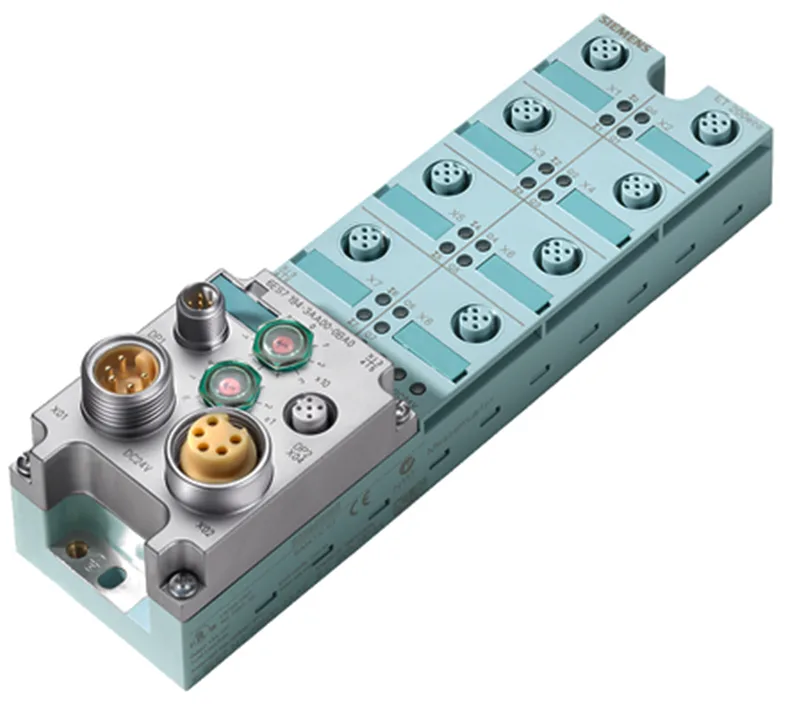

The Siemens 6ES7143-3BH10-0XA0 is a SIMATIC ET 200S distributed I/O block that carries 8 digital inputs and 8 digital outputs on a single IP65/67 field node, addressed over PROFIBUS DP at up to 12 Mbit/s. The module is powered from a 24 V DC supply on 1L+ and draws roughly 70 mA at typical loading, with a stated power loss of 5 W — useful when budgeting cabinet heat and backplane capacity.
Inputs — what the thresholds and monitoring actually mean
Line-break monitoring is built in, with a lower limit of 12 Ω and an upper limit of 4 kΩ, and a typical per-channel response threshold of 4 A is published as a fault-trip characteristic for shorted wiring.
Outputs — derating is the load-bearing rating
Each of the eight outputs is rated 1.3 A at signal '1', with a module-wide summation current of 5.2 A up to 55 °C and a 1 A per-channel figure cited for the same ambient — the cable current-carrying capacity is the binding limit, not the channel number. Switching frequency is rated 100 Hz on a resistive load but drops to 0.5 Hz on inductive loads per IEC 60947-5-1 DC-13, and 1 Hz on lamp loads, so a solenoid or contactor coil directly driven from this block must be picked within the DC-13 envelope. Per-channel short-circuit protection, reverse-polarity protection, and isochronous 'controlling a digital input' capability are present, which simplifies field wiring where a single sensor doubles as a status return. Typical input-to-output and output-to-output turn times are 3 ms in each direction, so this block is not aimed at high-speed pulse trains; it sits in the general-purpose control band.
Fieldbus, isolation, and field-mounting
Isolation is tested at 500 V DC, and the inter-circuit voltage rating is 75 V DC / 60 V AC, which is the figure to check when mixing this block with low-voltage signal wiring in the same field manifold. IP65/67 protection class is published for the housing, and unshielded cable runs are listed to 30 m maximum, so field cabling should be planned inside that envelope or switched to shielded media beyond it. A group-error SF LED (red) is provided, while diagnostic alarms are not, so the SF lamp is the on-block indicator to wire into the cabinet acceptance walk-through.
The normalized spec sheet carries 'current' for the 6ES7143-3BH10-0XA0, which is the basis for treating it as an in-production ET 200S I/O block for tender and BOM purposes. The module is not marked for output uprating beyond the figures in the spec table, so any derating beyond 5.2 A summation or 1.3 A per channel must come from external design (cable sizing, ambient, duty cycle), not by operating the block above its published ratings.
