Siemens ET 200SP 4-channel analog input module, for resistance thermometers and resistors, 24 V DC, 0.7 W.
| Parameter | Value |
|---|---|
| Number of analog inputs | 4 |
| Input range: 0 to 600 Ohm | Yes |
| RTD type: Pt100 | Yes |
| RTD type: Pt200 | Yes |
| Max. shielded signal cable length | 30 m |
| Parameter | Value |
|---|---|
| Resolution (bit incl. sign), max. | 15 bit; at 150, 300, 600 und 3 000 ohms; otherwise 15 bits + sign |
| Measurement principle | integrating |
| Temperature measurement error (±) | 0.002 %/K |
| Interference voltage suppression (at interference frequency) | 50 / 60 Hz |
| Parameter | Value |
|---|---|
| Wire-break detection | Yes |
| Diagnostic alarm | Yes; Parameterizable |
| Diagnostics function | Yes |
| Parameter | Value |
|---|---|
| Isolation: channels to backplane bus | Yes |
| Isolation: between channels | No |
| Isolation test voltage | 707 V DC (type test) |
| Parameter | Value |
|---|---|
| Rated value (DC) | 24 V |
| Power loss, typ. | 0.7 W |
| Reverse polarity protection | Yes; against destruction |
| Parameter | Value |
|---|---|
| Width | 45 mm |
| Height | 130 mm |
| Depth | 35 mm |
| Weight, approx. | 150 g |

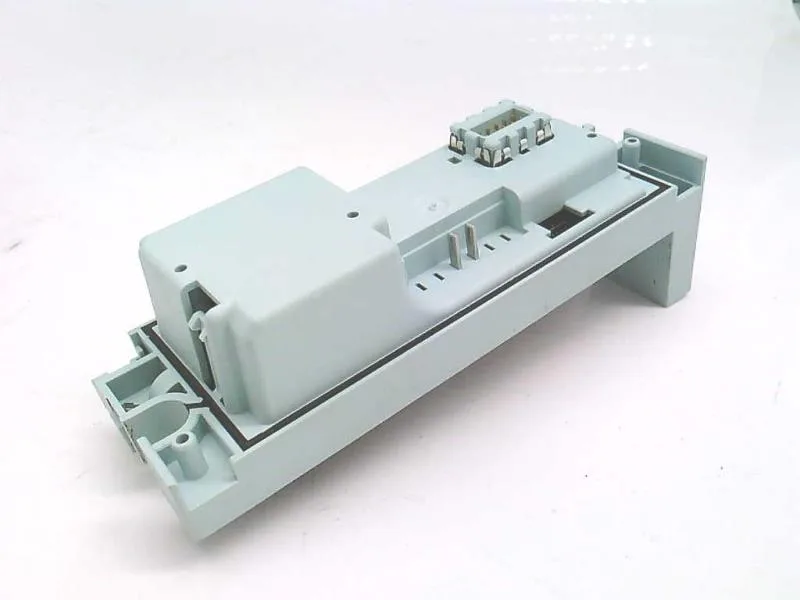

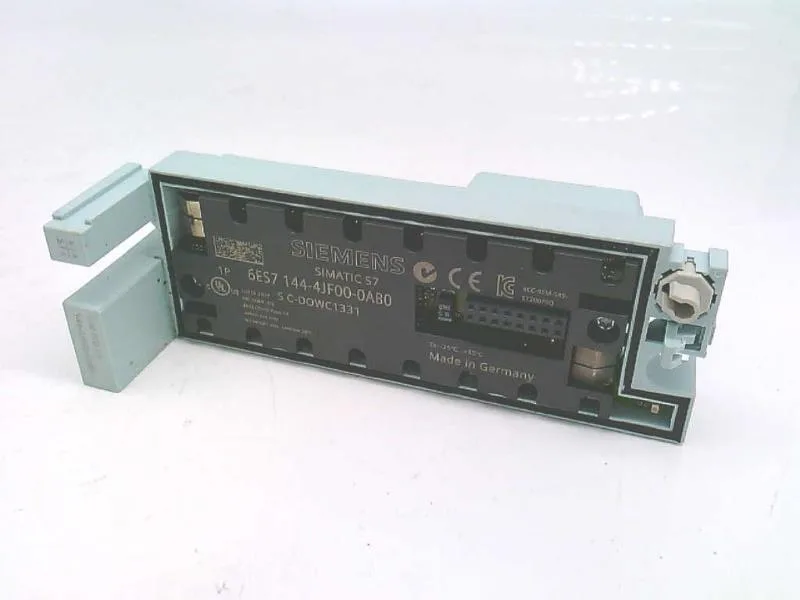

The 6ES7144-4JF00-0AB0: Diagnostic alarm, overflow/underflow detection, and a group error LED are standard. The module draws 0.7 W from the 24 V DC backplane. Important: the module does not support Cu10 sensors; only Pt and Ni types plus bare resistance ranges are available.
Isolation between channels and the backplane is type-tested at 707 V DC, keeping common-mode noise within 5 Vpp.
No, Cu10 support is not listed. The module supports Pt100, Pt1000, Ni100, Ni1000, and other Ni/Pt types as well as resistance ranges.
Width 45 mm, Height 130 mm, Depth 35 mm, weight approximately 150 g.
It provides a parameterizable diagnostic alarm, wire-break detection, overflow/underflow detection, and a group error SF LED.
