Overview

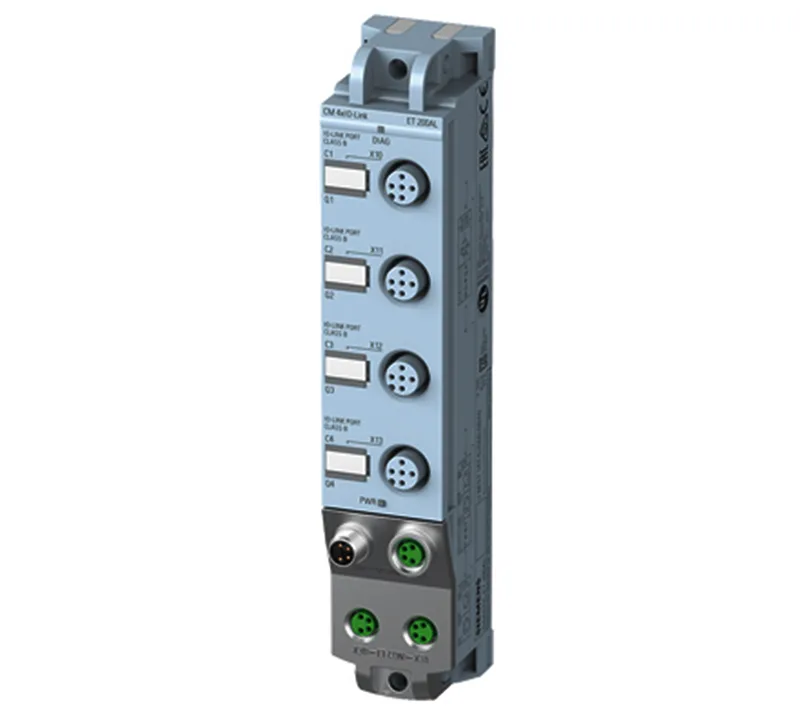

The 6ES7147-5JD00-0BA0 is a Siemens SIMATIC IO-Link master module with four ports, each supporting digital input (DI) and digital output (DO) with a maximum switching current of 100 mA per channel. It operates on a 24 V DC supply, draws 2.6 W, and is rated IP65 for direct machine-mount or DIN-rail installation in harsh environments.
Function & operation
This module acts as an IO-Link master, managing up to four IO-Link devices (sensors, actuators) per port. Each port provides a 2 kbyte data buffer for parameter and process data exchange, and the master supports backup and restore of device parameters via the function block IO_LINK_MASTER — useful for quick device swaps without manual reconfiguration. The four ports deliver a total output current of 1.4 A, with an additional device supply of 1.6 A available across all ports for powering connected sensors. The DO channels switch up to 100 mA each, suitable for small solenoid valves, indicator lights, or relay coils. The module uses M8, 4-pin shielded connectors for the IO-Link connection and an M12 wiring block for the auxiliary supply.
Applications
IO-Link master modules of this class are deployed on assembly lines, packaging cells, and material-handling stations where distributed sensors and actuators need a single-cable digital link back to the controller. The IP65 rating allows mounting directly on the machine frame, reducing cabinet space and wiring runs. Typical devices connected include proximity switches, pressure sensors, and small pneumatic valve islands.
Lifecycle & availability
RoHS compliance date is 04-09-14. No end-of-life notification is recorded.
