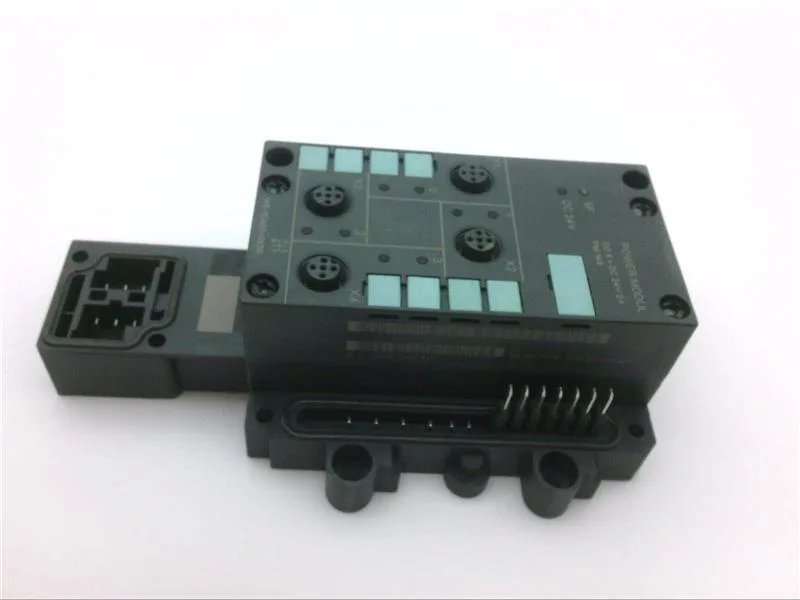

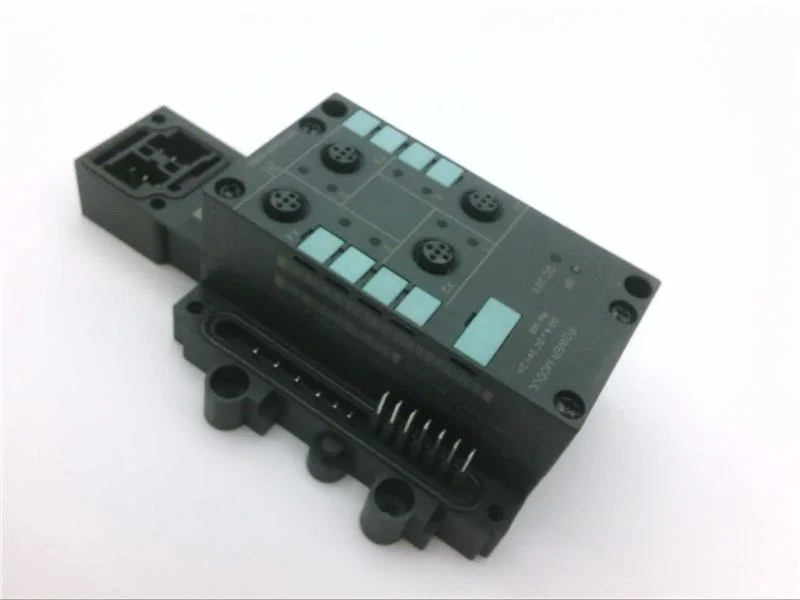

Siemens 6ES7148-1CA00-0XB0 Power Module
MPN6ES7148-1CA00-0XB0
***Spare part*** SIMATIC DP, Power module PM 148 for ET 200X 4 DO, 24V/2A DC with Load voltage supply channel diagnostics
$920.75Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsListing updated Jun 2026
Specifications
Outputs
| Parameter | Value |
|---|---|
| Digital outputs | 4 |
Electrical
| Parameter | Value |
|---|---|
| Rated value (DC) | 24 V |
| Output current, resistive load, max. | 100 Hz |
| Output current at signal "1" (rated) | 2 A; At 24 V DC |
| Output current, max. per circuit / per module | 2.4 A |
| Output voltage at signal "1" (min.) | 2L+ (-0,8 V) |
| Residual current at signal "0", max. | 0.5 mA |
| Current consumption from backplane bus (5 V DC), max. | 40 mA |
| Power dissipation (typ.) | 2.5 W |
| Inductive shutdown voltage clamp | 2L+ (-53 V) |
| Load resistance, upper limit | 4 kΩ |
| Load resistance, lower limit | 12 Ω |
| Isolation between channels | No |
| Isolation between channels and backplane bus | Yes |
| Isolation test voltage | 500 V DC |
Protection & Diagnostics
| Parameter | Value |
|---|---|
| Short-circuit protection | Yes; Electronic |
| Reverse polarity protection | No |
| Diagnostics function | Yes; Parameterizable |
| Diagnostic alarm | Yes |
| Short-circuit response threshold (typ.) | 3.5 A |
| Short-circuit detection | Yes; channel by channel |
| Wire-break detection | Yes; channel by channel |
| Redundant load control | Yes; only outputs of the same group |
| Output can drive a digital input | Yes; at minimum current of 6 mA |
Performance
| Parameter | Value |
|---|---|
| Switching frequency, inductive load, max. | 0.5 Hz |
| Switching frequency, lamp load, max. | 1 Hz |
Mechanical & Connection
| Parameter | Value |
|---|---|
| Cable length, unshielded, max. | 30 m |
| Width | 87 mm; Width module 60 mm |
| Height | 165 mm |
| Depth | 67 mm; incl. connector |
| Weight (approx.) | 250 g |
MPN
6ES7148-1CA00-0XB0
