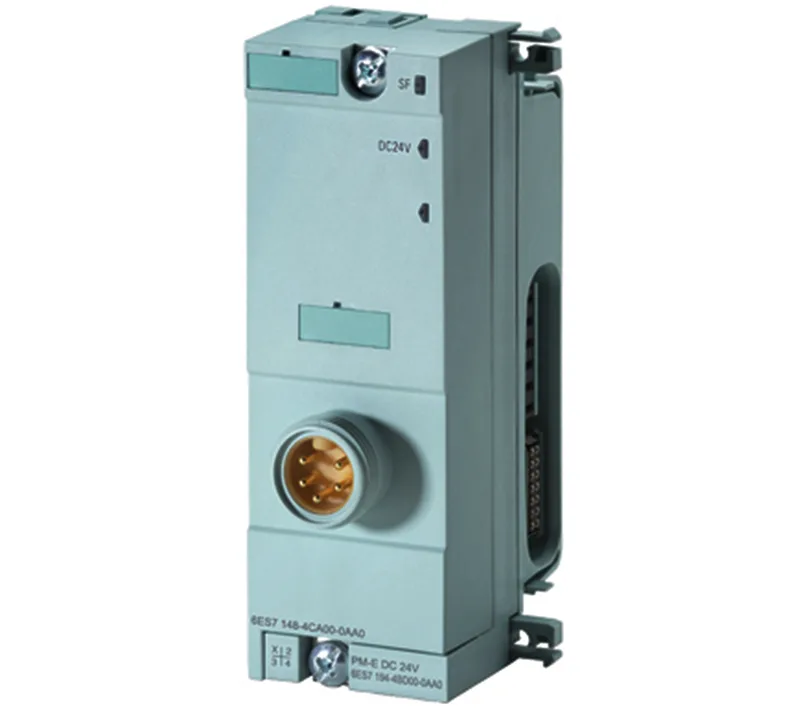

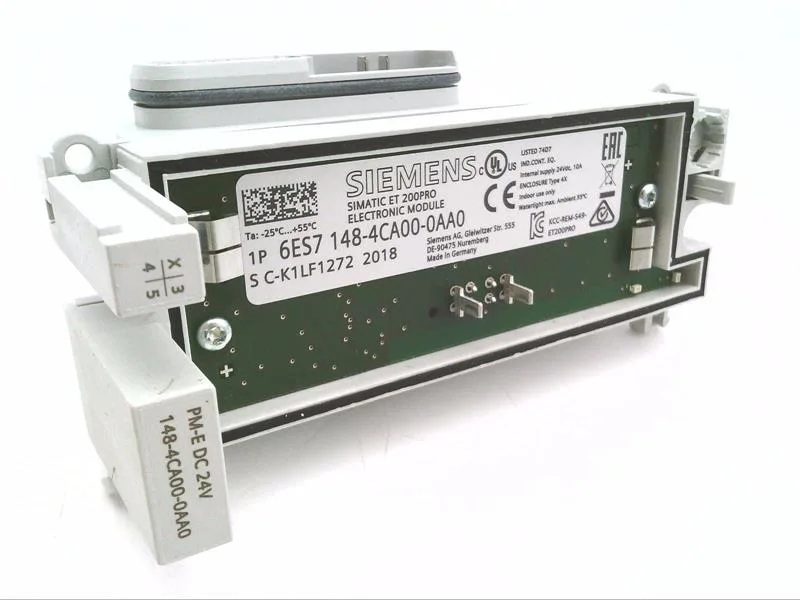

Siemens 6ES7148-4CA00-0AA0
MPN6ES7148-4CA00-0AA0
Active
SIMATIC DP, Power module for Electronic modules ET 200 PRO PM-E, 24 V DC, incl. bus module, connection module PM-E 6ES7194-4B.00-0AA0 order separately
$46.51Ref. price · indicative, final on quote
StockContact for availability
Lead timeCall for availability wk
MOQ1 pcs
Sourced new & surplus through independent channelsListing updated Jun 2026
Specifications
Electrical
| Parameter | Value |
|---|---|
| Rated value (DC) | 24 V |
| Max. | 10 A; up to 55 °C (on the internal busbars of the ET 200pro) |
| Power loss (typ.) | 0.1 W |
| Short-circuit protection | Yes; via an exchangeable fuse in the power module |
| Reverse polarity protection | Yes; against destruction |
| Isolation test voltage | 707 V DC (type test) |
Performance
| Parameter | Value |
|---|---|
| Diagnostics function | Yes |
| Group fault indicator (SF, red LED) | Yes |
Environmental
| Parameter | Value |
|---|---|
| IP protection rating | IP65/67 |
Mechanical
| Parameter | Value |
|---|---|
| Height | 130 mm |
| Width | 45 mm |
| Depth | 35 mm |
| Weight (approx.) | 140 g |
Other specifications
| Parameter | Value |
|---|---|
| Missing load voltage | Potential group of the power module |
| For load voltage monitoring | Yes |
| From load voltage 2L+, max. | 3 mA |
| Diagnostic information readable | Yes |
| Between load voltage and backplane bus | Yes |
MPN
6ES7148-4CA00-0AA0
