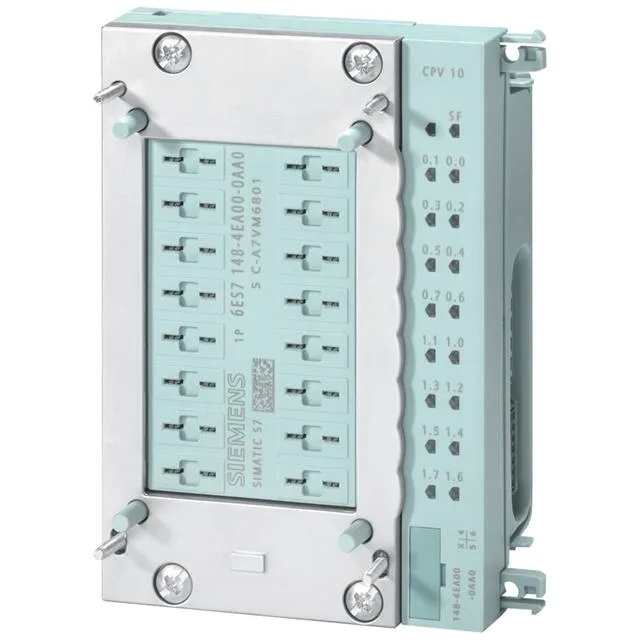

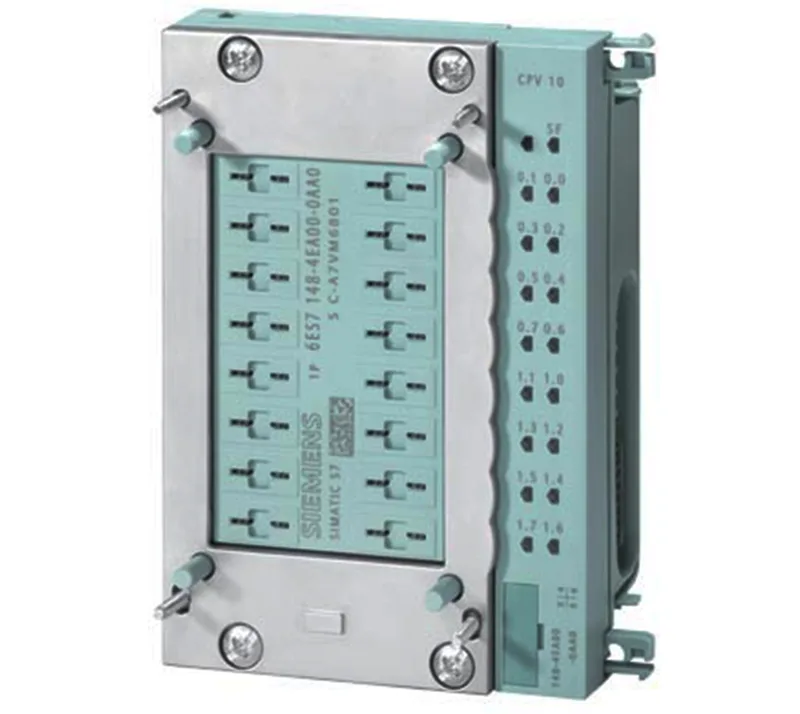

6ES7148-4EA00-0AA0 - Siemens
MPN6ES7148-4EA00-0AA0
Active
SIMATIC DP, Pneumatic interface for ET 200 PRO, 16 DO pneumatics for coupling with Festo valve terminal CPV-10; incl. bus module
$181.61 – $531.59Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsListing updated Jun 2026
Specifications
Outputs
| Parameter | Value |
|---|---|
| Digital outputs | 16 |
Electrical
| Parameter | Value |
|---|---|
| Rated value (DC) | 24 V |
| Output current at signal "1" (rated) | 12 mA |
| Output current, max. per circuit / per module | 15 mA |
| Power dissipation (typ.) | 2.6 W |
| Load resistance, upper limit | 2 500 Ω |
| Load resistance, lower limit | 500 Ω |
| Isolation between channels and backplane bus | Yes |
| Isolation test voltage | 707 V DC (type test) |
| From load voltage 2L+, max. | 300 mA; Including valves |
Protection & Diagnostics
| Parameter | Value |
|---|---|
| Short-circuit protection | Yes |
| Reverse polarity protection | Yes |
| Diagnostics function | Yes |
| Diagnostic alarm | Yes |
Performance
| Parameter | Value |
|---|---|
| Switching frequency, inductive load, max. | 25 Hz |
Mechanical & Connection
| Parameter | Value |
|---|---|
| Width | 90 mm |
| Height | 130 mm |
| Depth | 47 mm |
Specifications
| Parameter | Value |
|---|---|
| Valve switching times from "0" to "1" | 17 ms |
| Valve switching times from "1" to "0" | 25 ms |
MPN
6ES7148-4EA00-0AA0
