What the module is and where it sits on the rail

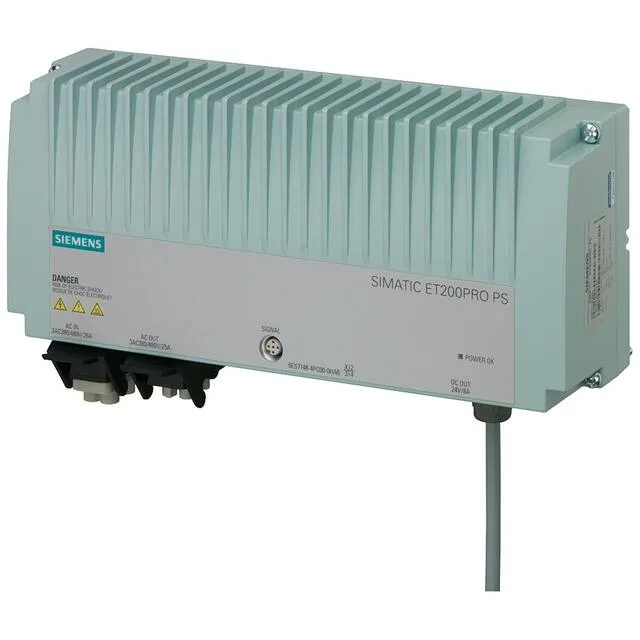

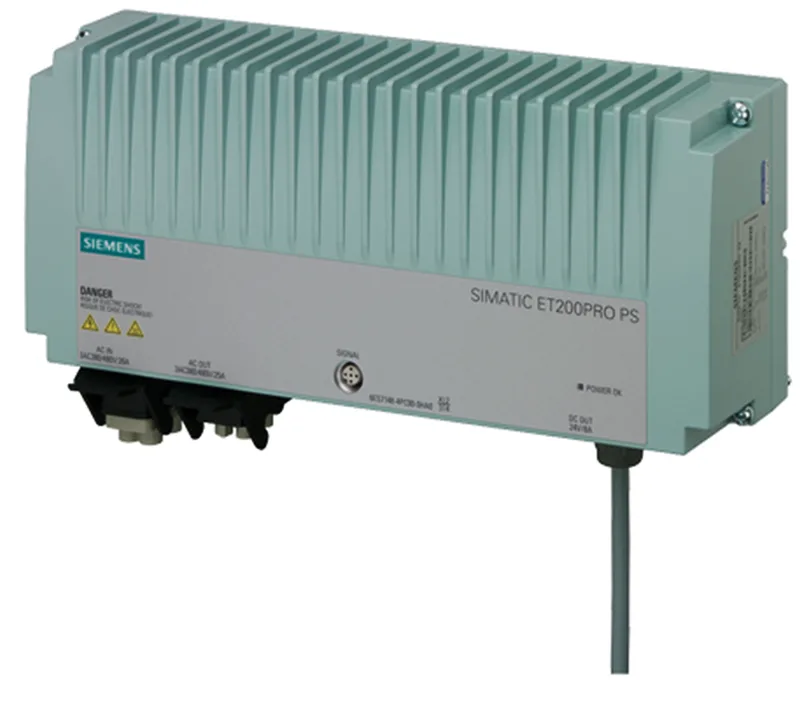

The 6ES7148-4PC00-0HA0: Input termination is a HAN Q4/2 plug connector carrying, L2, L3, PE; the counterpart ships under 3RK1911-2BE30 (6 mm²) in the electrical-accessories list, which keeps the field-side wiring serviceable without disturbing the module. Output exits through a 4-pole cable at 2 x 1.5 mm² to L+ and M with open, labeled ends, and the alarm channel rides a 5-pin M12 plug-in connector — the same pattern as other modules in the ET200pro power block, which is what makes a hot-swap on a populated rail practical.
Compliance envelope the doc-control pack has to carry
Approvals on this module are CE marking Yes, UL-Listed under UL 508 per NFPA compatibility with UL approval Yes, and EAC approval Yes, with galvanic isolation to EN 60950-1 and EN 50178 providing protective extra low output voltage Vout. That stack is sufficient for ordinary industrial cabinets but the record carries ATEX No, IECEx No, FM registration No, UL hazloc approval No, CSA approval No, NEC Class 2 No, and DNV GL No — so a hazardous-location, marine, or Class-2 panel has to look elsewhere, and that boundary belongs in the declaration pack before the BOM line closes. Operating temperature runs -25 … +55 °C under natural convection; storage and transport windows are wider at -40 … +70 °C, so the cabinet thermal design only has to clear the operating band. The enclosure is IP67 to enclosure type 5 indoor — sealed for the washdown floor, not for open outdoor exposure.
Feeder protection and inrush coordination
The mandatory feeder component is listed verbatim — circuit breaker 3RV2011-1DA10 or 3RV2711-1DD10 (UL 489) is required in the feeder, with fuse protection T 4 A and bridging of equipment No. The initial inrush is 340 V, tolerated at 320 … 340 V for max. 1 min, so the upstream breaker has to clear the let-through I²t maximum of 3.5 A²·s without nuisance tripping during that one-minute window. Efficiency is 88 % at the rated input, which is the figure the thermal budget inside the cabinet should work back from.
Loop draw and reliability floor
Maximum current draw is 3.5 mA with a typical 0.4 mA — the fieldbus power budget has to reserve the maximum, not the typical, when sizing headroom alongside other ET200pro modules. MTBF at 40 °C is 196 354 h, the figure a reliability planner would carry into a service-interval calculation. Specifications are stated at rated input voltage and ambient temperature +25 °C unless otherwise specified, so any derating outside that envelope has to be read off the published curve rather than inferred from the nominal numbers.
