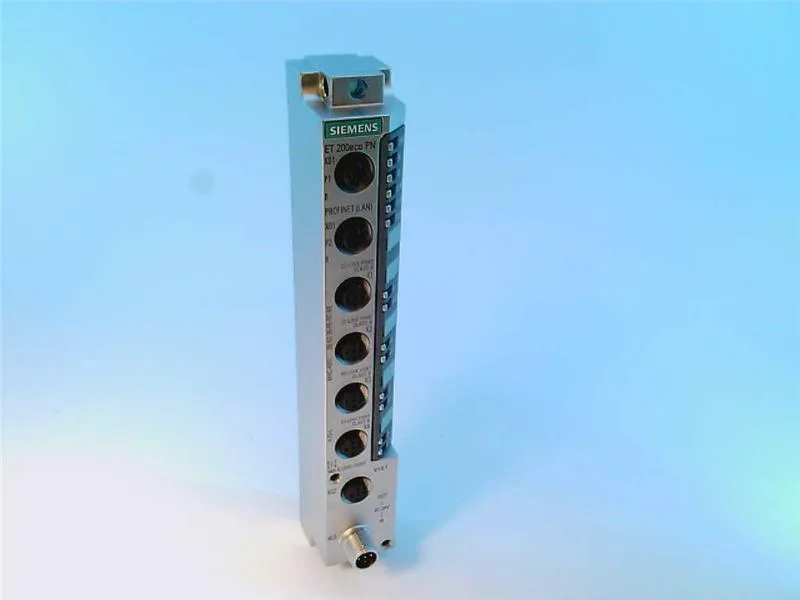

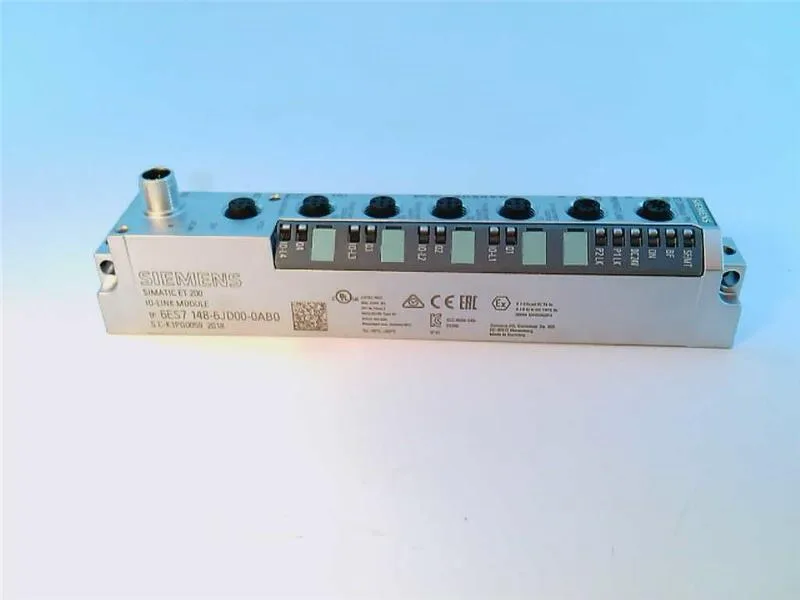

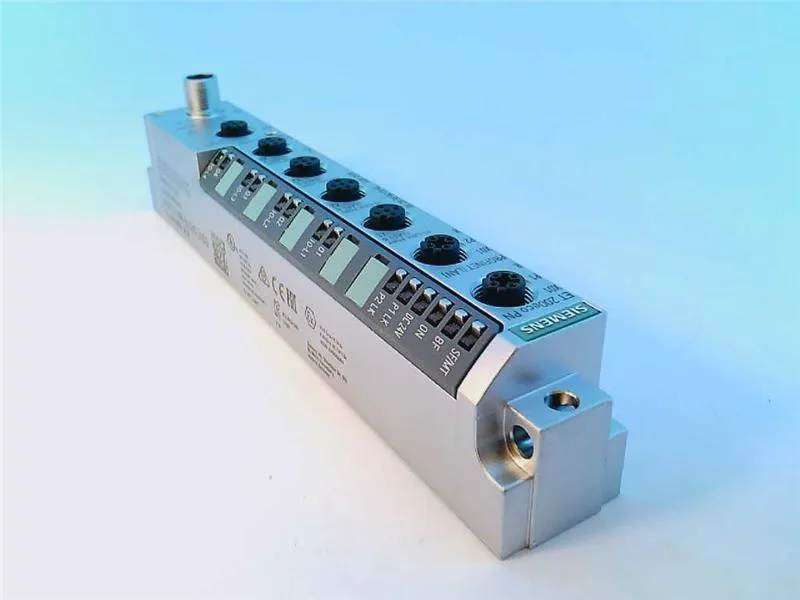

The 6ES7148-6JD00-0AB0: Digital inputs are present, and the four digital outputs each sink up to 100 mA — enough for small pilot valves or indicators. The onboard diagnostics cover group error via the red/yellow SF/MT LED, plus diagnostic alarms.
Installation Notes

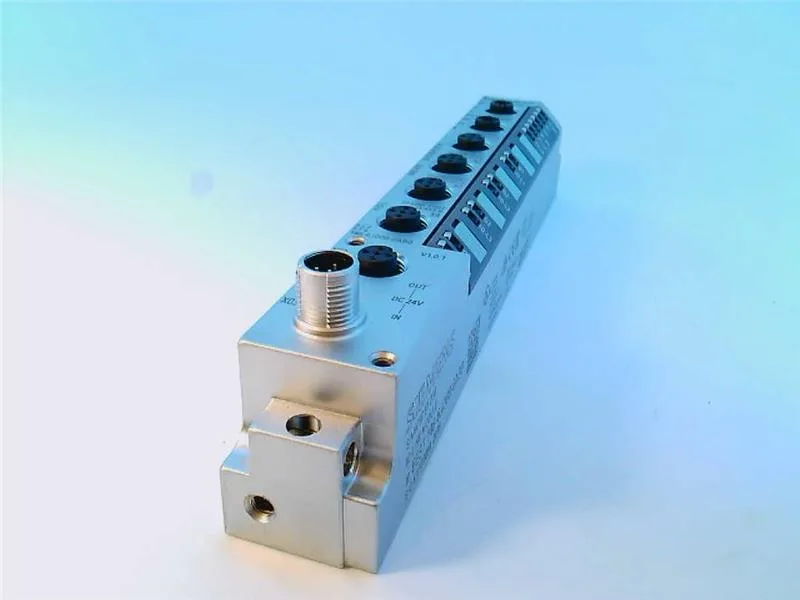

Powered by 24 V DC; typical power loss is 4.8 W. The integrated switch supports MRP, LLDP, SNMP, and DCP for PROFINET RT. Port wiring: Port type A uses a 3-core cable for IO-Link communication; type B adds two cores for the auxiliary supply. Both accept M12 connectors with A-coded pinout. Short-circuit protection is present on device supply to M.
