PROFIBUS DP gateway for ET200S remote I/O

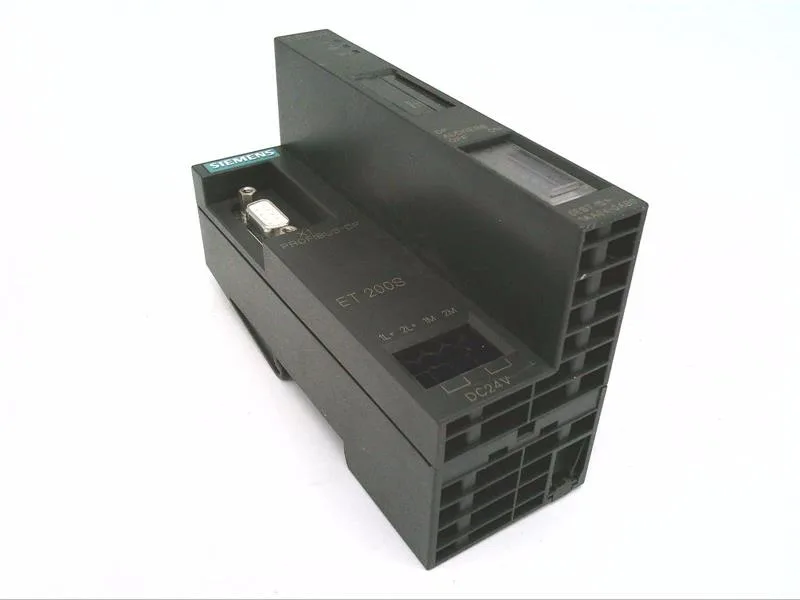

The Siemens 6ES7151-1AA04-0AB0 is the IM151-1 Standard interface module that sits at the head of an ET200S station, converting the PROFIBUS DP fieldbus into the backplane bus for up to 63 peripheral modules. It handles a data volume of 244 bytes each for input and output, which is the ceiling for a single DP slave in V0/V1 mode — enough to map a full slice of digital and analog channels without needing a second node. The bus connection is a 9-pin Sub-D socket running RS-485, with auto-bauding across the full range from 9.6 kbit/s up to 12 Mbit/s. That 12 Mbit/s ceiling matches the DP bus cycle time requirements of most mid-size ET200S layouts; if your application needs isochronous mode (DP V2), this module does not support it — you would step up to the IM151-1 High Feature variant.
Typical power draw from the 24 V supply is 3.3 W, with a maximum draw of 200 mA from the 1L+ supply rail. The module also provides up to 80 mA on the backplane bus for the downstream I/O modules — if your slice count is high, check that the cumulative backplane current stays under this limit. Diagnostics are handled via the front-panel LEDs: a green ON LED for supply voltage, a red SF group error, and a red BF bus fault. The module also supports alarms and diagnostics functions, which get mapped into the DP master's diagnostic buffer — useful for the operator who needs to know which slice dropped off at 2 a.m.
