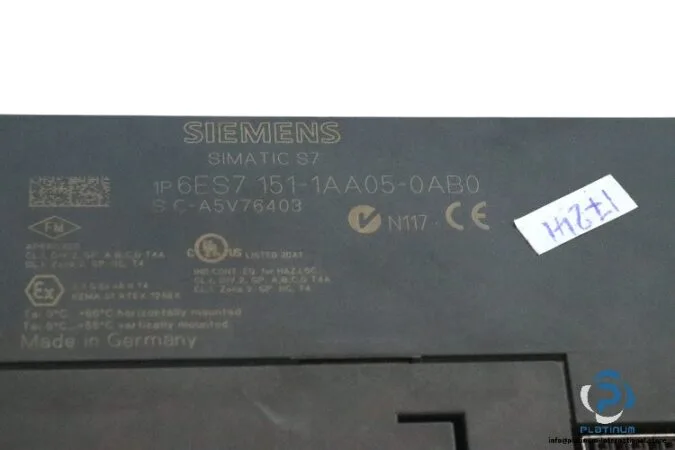

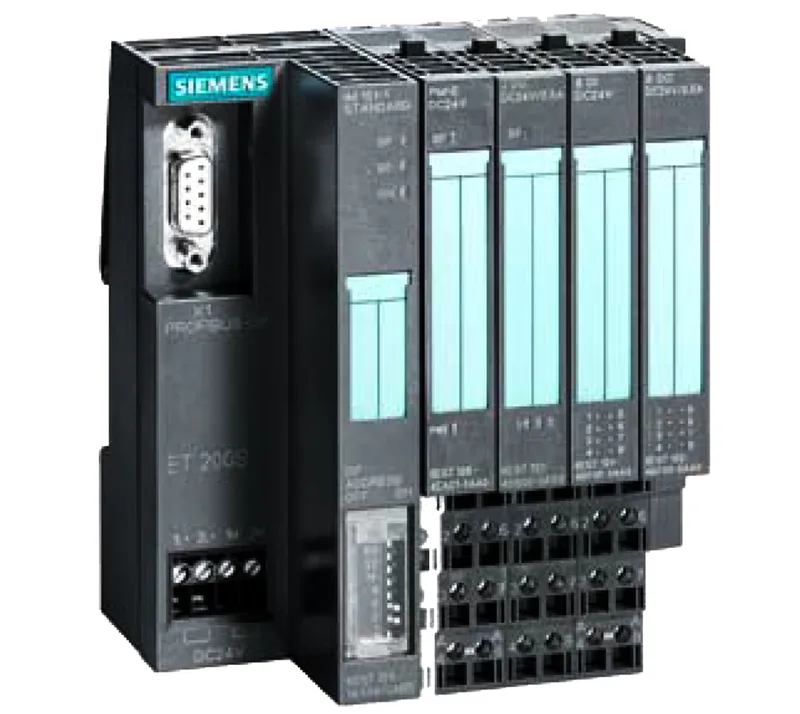

The Siemens 6ES7151-1AA05-0AB0 is a SIMATIC DP interface module for the ET 200S distributed I/O system. It handles PROFIBUS DP communication with a maximum transmission rate of 12 Mbit/s, supporting data volumes of 244 bytes each for inputs and outputs. Diagnostic functions and a group error SF LED allow quick fault isolation. The interface uses a 9-pin sub D socket and RS-485 transmission, with cable runs up to 1 200 m.
Panel mounting and wiring
Width 45 mm, height 119.5 mm, depth 75 mm — fits a standard DIN-rail slice. Supply draw 200 mA from 1L+; typical power loss is 3.3 W. The 9-pin sub D socket connects to PROFIBUS DP. Transmission rate selectable from 9,6 kbit/s to 12 Mbit/s per the master configuration.
