What this IM 151-1 Standard does in the ET 200S rack

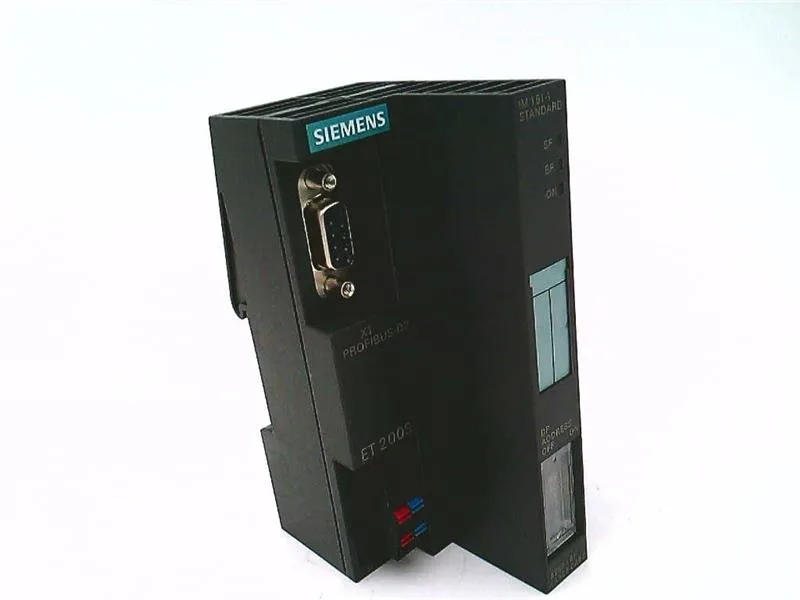

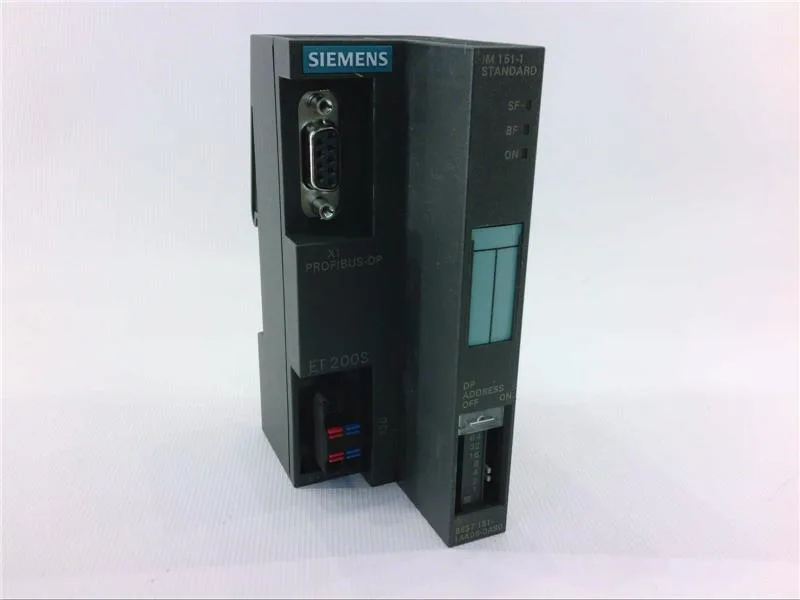

The Siemens 6ES7151-1AA06-0AB0 is the PROFIBUS DP interface module for the ET 200S distributed I/O system — it sits in the rack and handles the bus communication between the controller and up to 63 I/O modules. The data volume is 244 bytes each for inputs and outputs, which sets the addressable I/O ceiling for the station. It supports PROFIBUS DP V0 and V1, with a transmission rate up to 12 Mbit/s, and connects via a 9-pin D-sub socket. The module also handles alarms, diagnostics, and SYNC/FREEZE commands — useful for coordinated motion or batch processes where slave-to-slave data exchange is needed.
Mounting and power budget in the panel
It draws up to 200 mA from the 1L+ supply rail and provides 80 mA output current for the bus interface. Typical power loss is 3.3 W — factor that into the enclosure thermal budget, especially if the rack is densely populated. The module operates from 0 °C to 60 °C ambient, with isolation tested at 500 V DC between the backplane bus and electronics. It has a 20 ms mains failure hold-up time — enough to ride through brief dips without dropping the bus.
