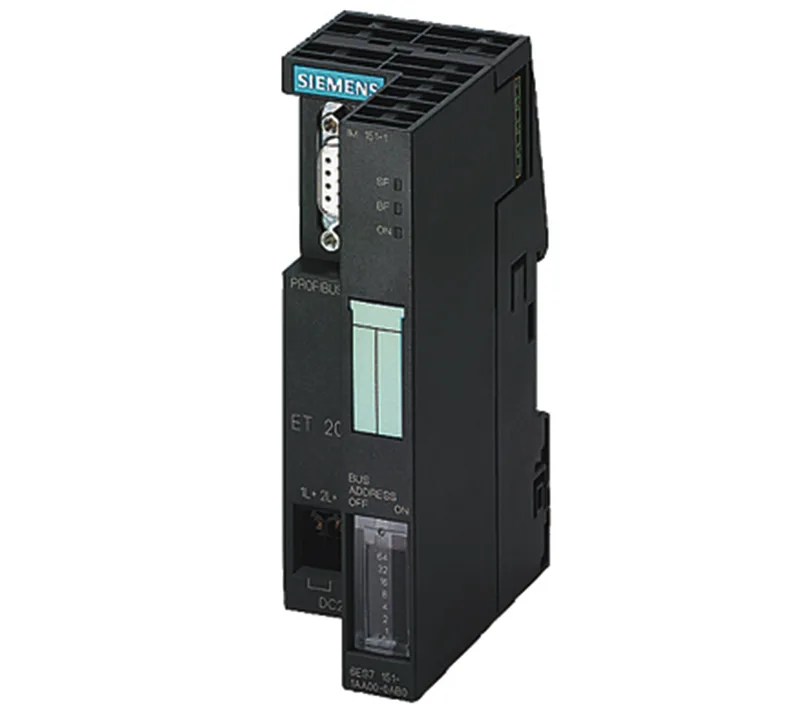

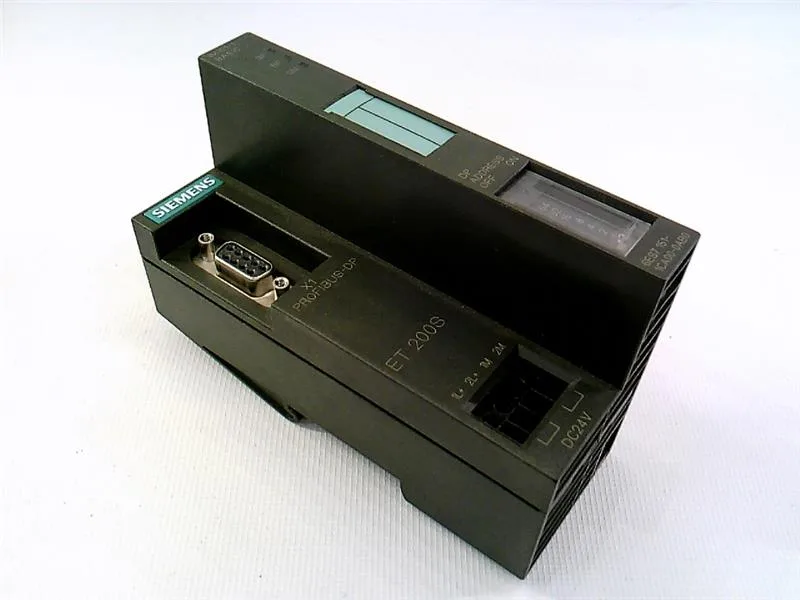

Siemens SIMATIC DP interface module IM 151-1 Basic for ET 200S, 6ES7151-1CA00-0AB0, PROFIBUS DP, 12 Mbit/s, 88 byte I/O.
| Parameter | Value |
|---|---|
| Transmission rate, max. | 12 Mbit/s; 9,6 / 19,2 / 45,45 / 93,75 / 187,5 / 500 kbit/s; 1,5 / 3 / 6 / 12 Mbit/s |
| Diagnostics function | Yes |
| Isochronous mode | No |
| Parameter | Value |
|---|---|
| Power loss (typ.) | 1.5 W |
| Isolation test voltage | 500 V DC |
| Parameter | Value |
|---|---|
| Input data area | 88 byte |
| Output data area | 88 byte |
| Parameter | Value |
|---|---|
| Width | 45 mm |
| Height | 119.5 mm |
| Depth | 75 mm |
The 6ES7151-1CA00-0AB0: Module dimensions are 119.5 mm high, 45 mm wide, 75 mm deep—fits on standard DIN rail. Bus connection is a 9-pin sub-D socket; the unit includes a termination module per the spare-part description. Power draw from 1L+ is 70 mA max; the DP interface output is rated for 80 mA. Typical power loss is 1.5 W, leaving ample budget for downstream I/O modules on the backplane.
