Siemens 6ES7151-1CA00-3BL0

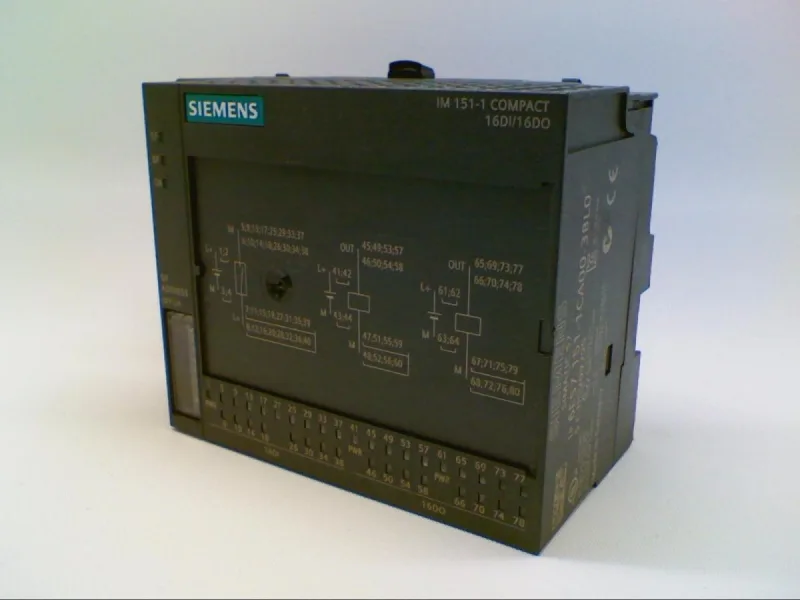

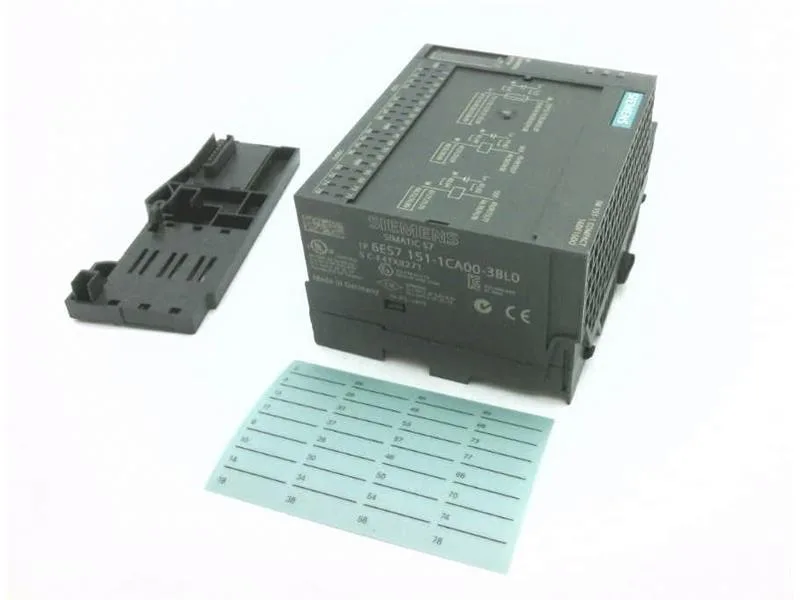

Siemens 6ES7151-1CA00-3BL0 Digital Output Module, 16 I/O

MPN 6ES7151-1CA00-3BL0

Siemens SIMATIC DP, 16 digital inputs, 16 digital outputs, 24 VDC, PROFIBUS DP, 12 Mbit/s, IP20, 58 x 120 x 81 mm.

$241.30 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & stockist· Listing updated Sep 2026

Specifications

6ES7151-1CA00-3BL0 specifications
ParameterValue
IP ratingIP20
Depth58 mm
Width120 mm
Height81 mm

Product details

PROFIBUS DP I/O block with 16 inputs and 16 outputs

The Siemens 6ES7151-1CA00-3BL0 is a SIMATIC DP digital I/O module that packs 16 inputs and 16 outputs on a single PROFIBUS DP node, running at up to 12 Mbit/s on the bus. It's rated for 24 VDC input voltage and draws about 3 W typical power loss, so it's a straightforward fit into a standard 24 V control panel without worrying about heat buildup.

Signal timing and diagnostics for field troubleshooting

Input signal transitions run about 0.5 ms from 0 to 1 and 1.3 ms from 1 to 0, while output switching hits 4.8 ms max in either direction — fast enough for most conveyor and discrete part sensing on a line. Built-in diagnostics flags a group error (SF red LED) and bus fault (BF red LED), which saves a technician from guessing which node dropped off the bus.

Current production — no obsolescence worry

No official replacement or successor has been issued, so the 6ES7151-1CA00-3BL0 is the part to specify for new builds or spares.

Panel fit and field wiring

At 58 mm deep, 120 mm wide, and 81 mm tall, it's a compact DIN-rail mount that fits into a standard IP20 enclosure alongside other SIMATIC DP slices. The module supports 2-wire sensors and has short-circuit protection on the outputs, so it handles the usual field wiring without needing extra fuse blocks for each channel.

MPN
6ES7151-1CA00-3BL0
