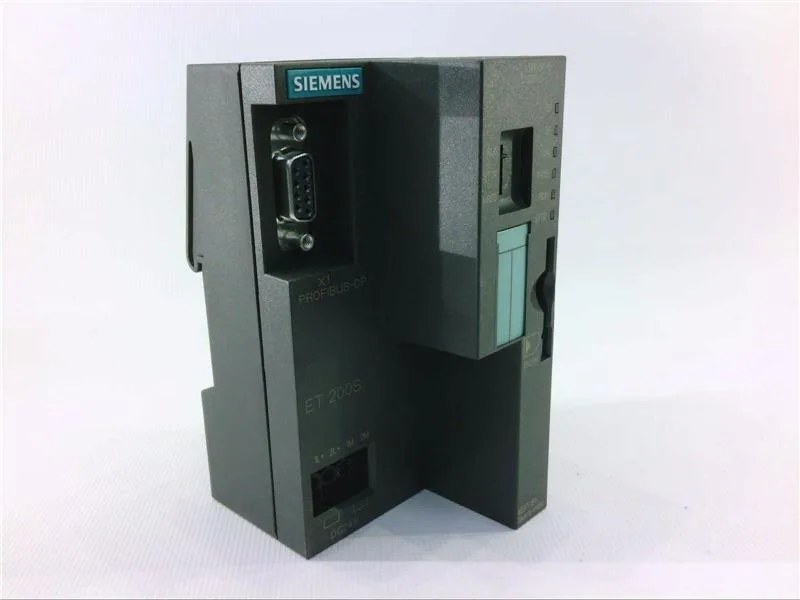

Siemens 6ES7151-7AA13-0AB0 — PLC Communication Modules

Siemens 6ES7151-7AA13-0AB0 PROFIBUS DP Master, DPV1

MPN6ES7151-7AA13-0AB0

Siemens ET 200S PROFIBUS DP master interface module, 6ES7151-7AA13-0AB0, with DPV1, FBD, LAD, SCL optional, STL, isolated RS-485, 244 byte I/O.

$365.76Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

6ES7151-7AA13-0AB0 — Identification
ParameterValue
Firmware versionV2.1.10
ExpandableNo
Hardware functional status (FS)01
6ES7151-7AA13-0AB0 — Communication
ParameterValue
Transmission rate, max.12 Mbit/s
Isochronous modeNo
6ES7151-7AA13-0AB0 — Electrical
ParameterValue
Rated value (DC)24 V
Permissible range, upper limit (DC)28.8 V
Permissible range, lower limit (DC)20.4 V
Power loss (typ.)3.3 W
Reverse polarity protectionYes
Short-circuit protectionYes
Isolation test voltage500 V DC
6ES7151-7AA13-0AB0 — I/O
ParameterValue
Input data area244 byte
Output data area244 byte
6ES7151-7AA13-0AB0 — Mechanical
ParameterValue
Width60 mm; DP master module: 35 mm
Height119.5 mm
Depth75 mm
TypeSFB

Product details

What this module is

The 6ES7151-7AA13-0AB0: The module accepts 244 byte of inputs and 244 byte of outputs, enough for a decent-sized remote rack. With 96 kB of integrated memory for program and data, it can run a local control routine if needed—not just a pass-through. It's a real DP master, not a slave, so it can manage a segment of bus without a higher CPU.

The specs that decide fit

Width is 60 mm (or 35 mm in the DP master variant, depending on how it's ordered), height 119.5 mm, depth 75 mm. That's a slim profile that fits in an ET 200S rail station without swallowing half the cabinet. Backed up by a 6-week hold time at 40 °C for the real-time clock and retentive data—so a power bump on Monday morning doesn't zero out your counters. The SYNC/FREEZE and equidistance features let you synchronise a bunch of drives or valve islands with repeatable bus timing. If your line has coordinated motion or a high-speed batch sequence, that's the difference between a clean shift and a jam.

Frequently asked questions

Does the 6ES7151-7AA13-0AB0 support FBD and LAD programming?

Yes, it supports FBD and LAD, with SCL optional and STL standard. All four languages are available for programming the module.

What is the DPV1 capability of this module?

It supports DPV1, which adds acyclic data exchange—useful for parameter access and diagnostics during cyclic operation.

Can this module replace a 6ES7314-1AF10-0AB0 in an existing panel?

No, the 6ES7151 module is for the ET 200S system (different rail and backplane) while the 6ES7314 is an S7-300 CPU. They are not mechanically or electrically interchangeable.
