Siemens 6ES7153-1AA03-0XB0 — PLC Communication Modules

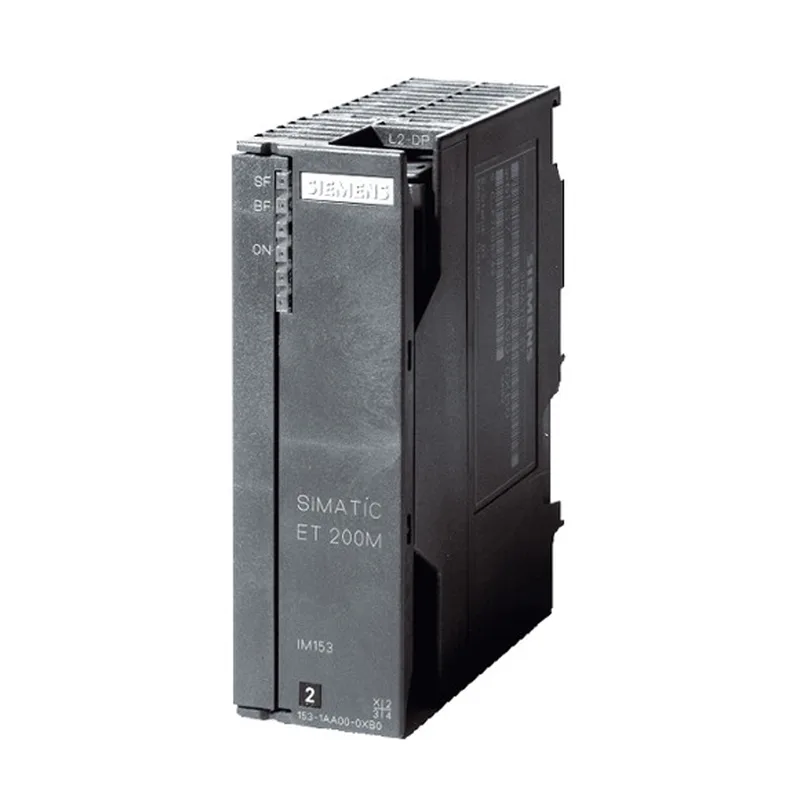

Siemens 6ES7153-1AA03-0XB0 PROFIBUS DP IM 153-1, 12 Mbit/s

MPN6ES7153-1AA03-0XB0
Active

Siemens IM 153-1 PROFIBUS DP interface module, 6ES7153-1AA03-0XB0, 12 Mbit/s, 128 byte I/O, IP20.

$150.00Ref. price · indicative, final on quote
Siemens 6ES7153-1AA03-0XB0 datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

6ES7153-1AA03-0XB0 — Communication
ParameterValue
Transmission rate, max.12 Mbit/s
TCP/IP supportNo
6ES7153-1AA03-0XB0 — Electrical
ParameterValue
Rated value (DC)5 V
Permissible range, upper limit (DC)28.8 V
Permissible range, lower limit (DC)20.4 V
Current consumption, max.350 mA; At 24 V DC
Power loss (typ.)3 W
Isolation test voltageIsolation voltage 500 V
6ES7153-1AA03-0XB0 — I/O
ParameterValue
Input data area128 byte
Output data area128 byte
6ES7153-1AA03-0XB0 — Environmental
ParameterValue
Operating temperature, max.60 °C
Operating temperature, min.0 °C
IP protection degreeIP20
Operating temperature, horizontal install, min.0 °C
Operating temperature, horizontal install, max.60 °C
Operating temperature, vertical install, max.40 °C
Operating temperature, vertical install, min.0 °C
6ES7153-1AA03-0XB0 — Mechanical
ParameterValue
Width40 mm
Height125 mm
Depth117 mm

Product details

The 6ES7153-1AA03-0XB0: Power is supplied via the 5 V DC backplane bus, drawing up to 1 A from the bus power module. The module dissipates 3 W typical and carries an I2t rating of 0.1 A²·s for short-circuit energy coordination.

Ambient temperature by mounting orientation

The 60 °C maximum ambient rating applies only when the module is installed horizontally. If mounted vertically, derate to 40 °C maximum. The lower limit is 0 °C in both orientations.

PROFIBUS DP interface details

The interface uses a 9-pin sub-D socket and runs RS-485 electrical levels. GSD files for DP and DPV1 are published: SIEM801D.GSD (DP) and SI01801D.GSG (DPV1). The module supports SYNC and FREEZE commands, and up to 125 node addresses are permitted on the segment.

Frequently asked questions

What is the I2t rating of the 6ES7153-1AA03-0XB0?

The I2t value is listed as 0.1 A²·s, which applies to the energy withstand on the backplane bus during fault conditions.

What is the maximum ambient temperature for the 6ES7153-1AA03-0XB0?

The maximum ambient temperature depends on orientation: 60 °C for horizontal mounting and 40 °C for vertical mounting. Minimum is 0 °C in either orientation.
