Siemens 6ES7153-2BA10-0XB0 — PLC Communication Modules

Siemens 6ES7153-2BA10-0XB0 IM 153-2 PROFIBUS DP, 12 Mbit/s

MPN6ES7153-2BA10-0XB0
Active

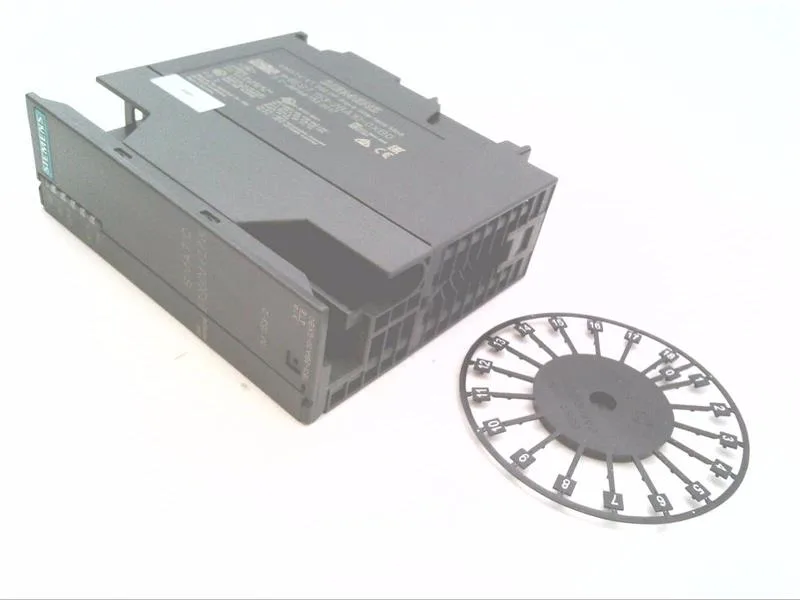

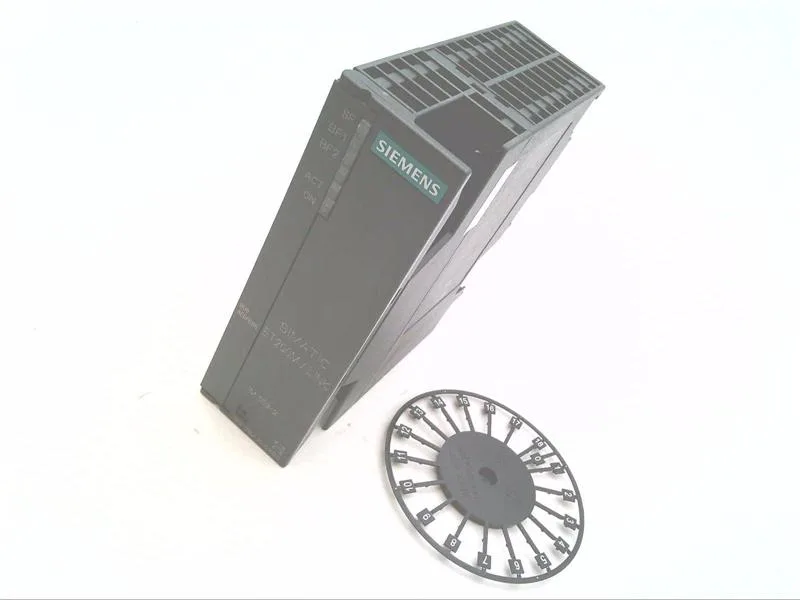

Siemens 6ES7153-2BA10-0XB0 IM 153-2, PROFIBUS DP slave for ET 200M, 24 V DC, 650 mA, 12 Mbit/s, IP20.

$438.15 – $1,008.72Ref. price · indicative, final on quote
Siemens 6ES7153-2BA10-0XB0 datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

6ES7153-2BA10-0XB0 — Identification
ParameterValue
Firmware versionV6.0.0
6ES7153-2BA10-0XB0 — Communication
ParameterValue
Transmission rate, max.12 Mbit/s
TCP/IP supportNo
6ES7153-2BA10-0XB0 — Electrical
ParameterValue
Rated value (DC)24 V
Permissible range, upper limit (DC)28.8 V
Permissible range, lower limit (DC)20.4 V
Current consumption, max.650 mA; with 24 V DC supply
Power loss (typ.)5.5 W
Isolation test voltageIsolation voltage 500 V
6ES7153-2BA10-0XB0 — I/O
ParameterValue
Input data area244 byte
Output data area244 byte
6ES7153-2BA10-0XB0 — Environmental
ParameterValue
Operating temperature, max.60 °C
Operating temperature, min.0 °C
IP protection degreeIP20
Operating temperature, horizontal install, min.0 °C
Operating temperature, horizontal install, max.60 °C
Operating temperature, vertical install, max.40 °C
Operating temperature, vertical install, min.0 °C
6ES7153-2BA10-0XB0 — Mechanical
ParameterValue
Width40 mm
Height125 mm
Depth117 mm

Product details

Time stamp accuracy and firmware context

The 6ES7153-2BA10-0XB0: Time stamp resolution is 0.466 ns with a 1 ms accuracy when up to 8 modules are on the bus; this extends to 10 ms for up to 12 modules. The module supports SYNC, FREEZE, and time stamp on both rising and falling edges. Firmware version V6.0.0 is the current release, compatible with STEP 7, COM PROFIBUS, and third-party tools via the GSD file SI05801E.GSG. Automatic baud rate search is enabled by default.

The module dimensions are 125 mm high, 40 mm wide, and 117 mm deep. It is IP20 rated. Horizontal installation allows an ambient range of 0 °C to 60 °C; vertical installation derates the maximum to 40 °C. Isolation is tested at 500 V, and potential separation exists between the bus and backplane.

Frequently asked questions

What is the I2t value and why does it matter?

The I2t rating is 0.1 A²·s. This values applies to the backplane supply and is used for fuse or short-circuit protection coordination. It is a low value typical of a bus module, not a motor load.

What compliance documentation is available?

The module carries IP20 protection and isolation tested at 500 V. Standard Siemens declarations for RoHS, REACH, and CE markings are provided with the part; specific UL or IEC certification files are available upon request from the manufacturer.

MPN
6ES7153-2BA10-0XB0
