The Siemens 6ES7153-2BA70-0XB0 is a PROFIBUS DP interface module for the ET 200M distributed I/O system, communicating over an RS-485 interface at up to 12 Mbit/s. I2t of 0.1 A²·s defines the module's fuse-protection characteristic — upstream overcurrent protection should coordinate with this value to avoid nuisance tripping during module inrush (3 A typical). The backplane bus supplies up to 1.5 A at 5 V DC for downstream I/O modules; take this into account when populating an ET 200M station to stay within the current budget. Power loss is 5.5 W typical at 24 V DC (permissible range 20.4 to 28.8 V DC). Maximum current draw from the interface side is 650 mA; the 9-pin sub D socket provides up to 70 mA for bus termination. Time resolution of 0.466 ns with SYNC and FREEZE capability supports isochronous PROFIBUS applications requiring precise timestamping. Accuracy is 1 ms with up to 8 modules, 10 ms with up to 12.
Siemens 6ES7153-2BA70-0XB0 PROFIBUS DP, 12 Mbit/s
MPN6ES7153-2BA70-0XB0
Active

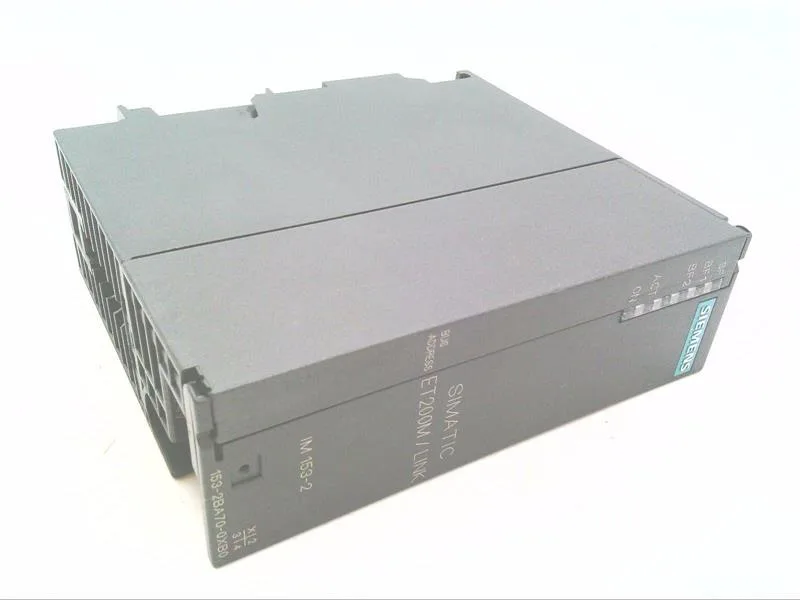

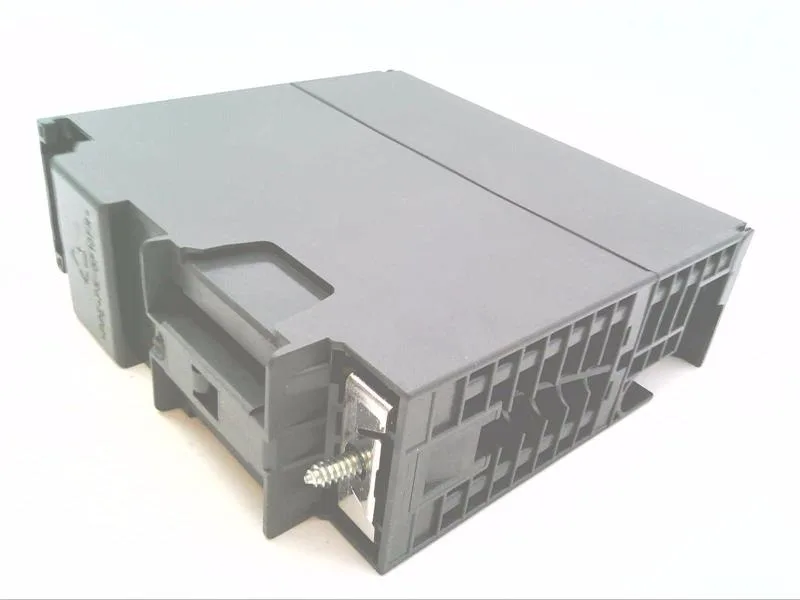

Siemens ET 200M PROFIBUS DP interface module, 6ES7153-2BA70-0XB0, 12 Mbit/s, 24 V DC, 5.5 W power loss.
$444.50 – $838.00Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsListing updated Jun 2026
Specifications
Identification
| Parameter | Value |
|---|---|
| Firmware version | V6.1 |
Communication
| Parameter | Value |
|---|---|
| Transmission rate, max. | 12 Mbit/s |
Electrical
| Parameter | Value |
|---|---|
| Rated value (DC) | 24 V |
| Permissible range, upper limit (DC) | 28.8 V |
| Permissible range, lower limit (DC) | 20.4 V |
| Current consumption, max. | 650 mA |
| Power loss (typ.) | 5.5 W |
| Isolation test voltage | Isolation voltage 500 V |
I/O
| Parameter | Value |
|---|---|
| Input data area | 244 byte |
| Output data area | 244 byte |
Environmental
| Parameter | Value |
|---|---|
| IP protection degree | IP20 |
| Operating temperature, horizontal install, min. | -25 °C |
| Operating temperature, horizontal install, max. | 60 °C |
| Operating temperature, vertical install, max. | 40 °C |
| Operating temperature, vertical install, min. | -25 °C |
Mechanical
| Parameter | Value |
|---|---|
| Width | 40 mm |
| Height | 125 mm |
| Depth | 117 mm |
Product details
Frequently asked questions
What is the I2t rating for this module?
The I2t rating is 0.1 A²·s. This value is used for coordinating upstream overcurrent protection with the module's internal fuse characteristic.
What is the depth of the module?
The depth is 117 mm, which fits standard ET 200M backplanes and enclosures.
