Siemens 6ES7153-2BA82-0XB0

Siemens 6ES7153-2BA82-0XB0 PROFIBUS DP IM, 12 Mbit/s

MPN 6ES7153-2BA82-0XB0

Siemens, ET 200M, PROFIBUS DP interface module, 6ES7153-2BA82-0XB0, 12 Mbit/s, 5 V DC backplane, 5.5 W, IP20.

$520.70 – $568.00 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & stockist· Listing updated Sep 2026

Specifications

6ES7153-2BA82-0XB0 specifications
ParameterValue
IP ratingIP20
Depth117 mm
Width40 mm
Height125 mm
Accuracy1 ms; 1 ms at up to 8 modules; 10 ms at up to 12 modules
Time formatRFC 1119

Product details

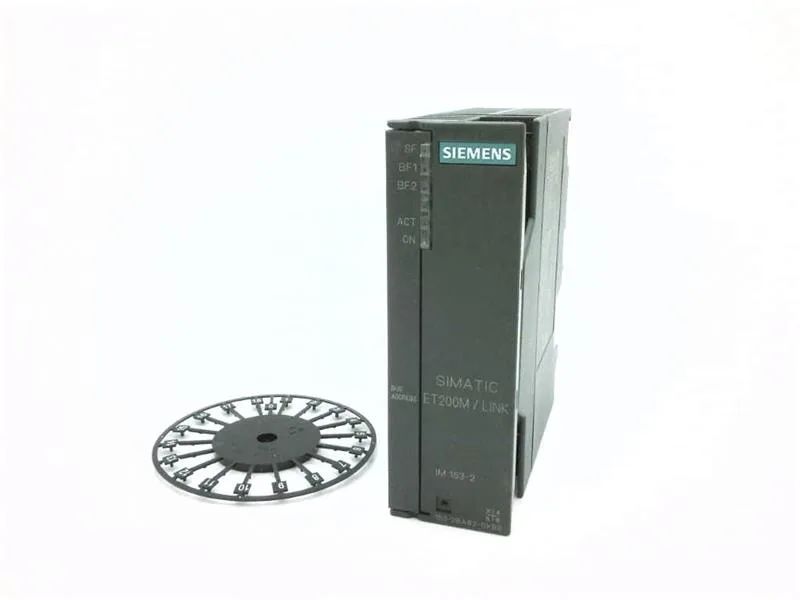

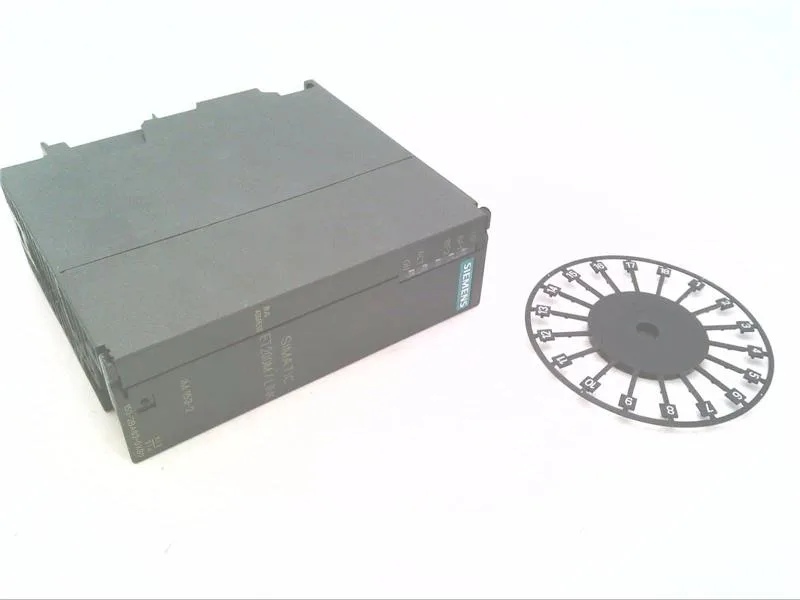

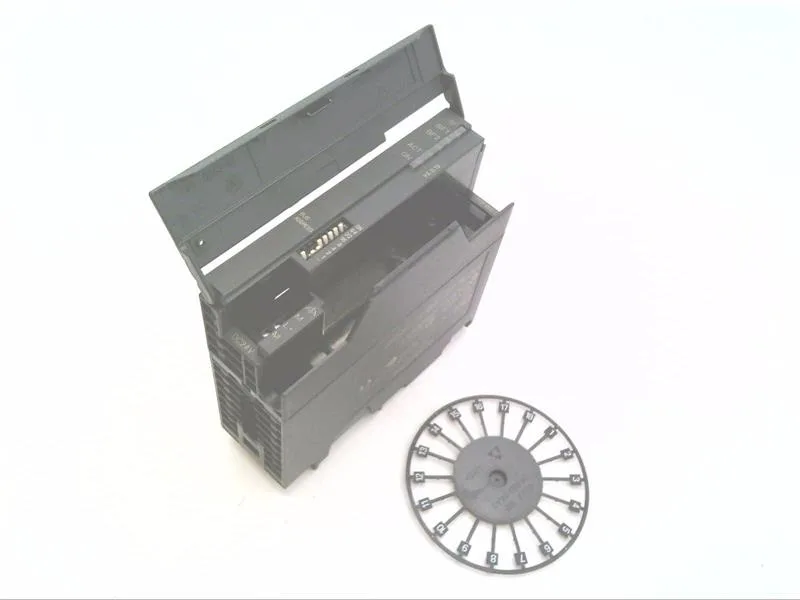

The Siemens 6ES7153-2BA82-0XB0 is a PROFIBUS DP slave interface module for the ET 200M distributed I/O family. It communicates at up to 12 Mbit/s over an RS-485 bus per EN 50170, exchanging up to 244 bytes each for input and output. The module draws a maximum of 650 mA from the backplane at 5 V DC, with a typical power loss of 5.5 W. The backplane current on the 5 V rail is limited to 1.5 A total — keep that in mind when populating the rack, because exceeding it drops the interface without warning.

Time stamping and sequence-of-events capture

Time stamps at signal change with a resolution of 0.466 ns and an accuracy of 1 ms when the station holds up to eight modules; accuracy relaxes to 10 ms with up to twelve modules. This module holds the station for event-triggered capture on a burner management or turbine governor system — that 1 ms window is fine for most plant-level sequence-of-events records, but if you need to resolve sub-millisecond faults you'll need a faster dedicated recorder.

Integration notes

Mounts on a DIN rail (IP20). Dimensions: 40×125×117 mm. PROFIBUS RS-485 via 9-pin sub-D; GSD file SI0480E.GSG. Operating temperature -25 to 60 °C; max altitude 3 000 m.

MPN
6ES7153-2BA82-0XB0
