Integrator note
The 6ES7153-4AA00-0XB0: Width 40 mm on the DIN rail, IP20 enclosure. Fits existing ET 200M backplane bus.

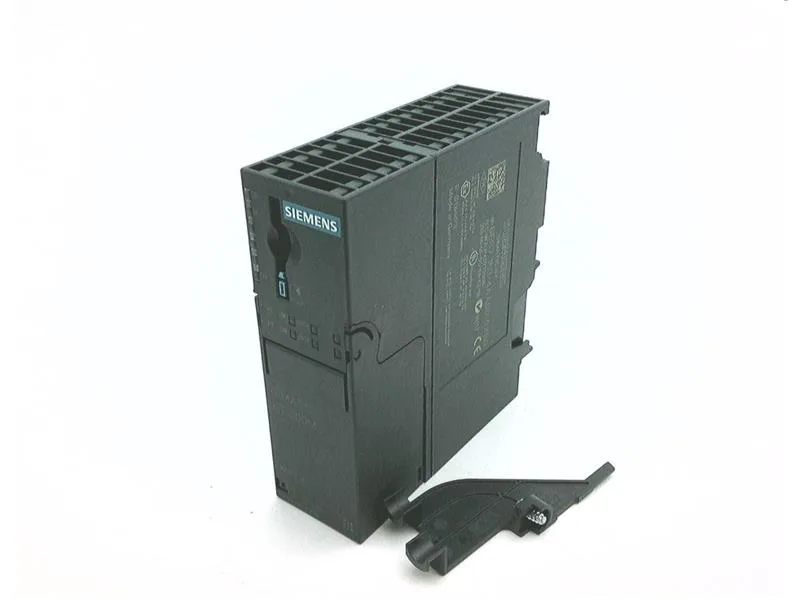

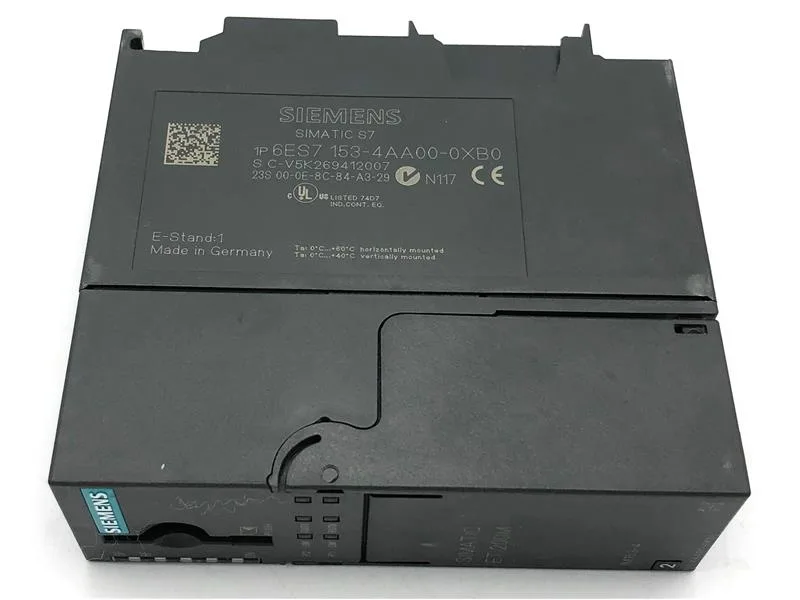

6ES7153-4AA00-0XB0 IM 153-4 PN IO, 100 Mbit/s
MPN6ES7153-4AA00-0XB0
SIMATIC DP, ET 200M Interface IM 153-4 PN IO, for max. 12 S7-300 modules, 200 byte input/output, PROFINET IO, 100 Mbit/s, MMC required.
$576.07Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsListing updated Jun 2026
Specifications
Communication
| Parameter | Value |
|---|---|
| TCP/IP support | No |
Electrical
| Parameter | Value |
|---|---|
| Rated value (DC) | 24 V |
| Permissible range, upper limit (DC) | 28.8 V |
| Permissible range, lower limit (DC) | 20.4 V |
| Current consumption, max. | 600 mA |
I/O
| Parameter | Value |
|---|---|
| Input data area | 192 byte |
| Output data area | 192 byte |
Environmental
| Parameter | Value |
|---|---|
| Operating temperature, max. | 60 °C |
| Operating temperature, min. | 0 °C |
| IP protection degree | IP20 |
Mechanical
| Parameter | Value |
|---|---|
| Width | 40 mm |
| Height | 125 mm |
| Depth | 118 mm |
Product details
Frequently asked questions
What is the operating temperature range?
0 °C to 60 °C.
What is the supply voltage and current draw?
24 V DC nominal, permissible range 20.4 to 28.8 V, max 600 mA.
How many S7-300 modules can be connected?
Up to 12 modules per DP slave interface.
Does it require a memory card?
Yes, a micro memory card (MMC) is required.
MPN
6ES7153-4AA00-0XB0
