What it is and what it does

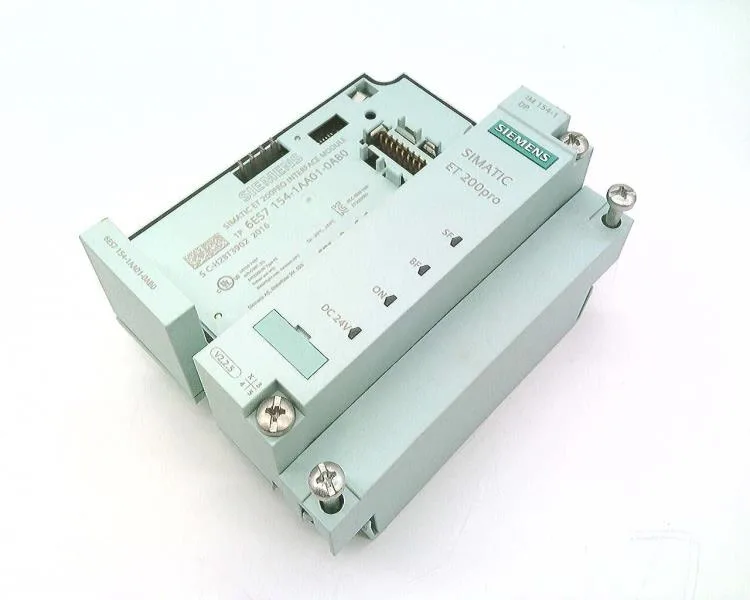

The Siemens 6ES7154-1AA00-0AB0 is a PROFIBUS DP interface module for the ET 200PRO distributed I/O family, handling up to 12 Mbit/s bus traffic and bridging 244 bytes each of input and output data. It operates from a 24 V DC supply, drawing up to 200 mA, and provides diagnostics including bus fault (BF), group error (SF), and parameterizable diagnostic and hardware interrupts.
What the ratings mean for your build
The -40 to 70 °C ambient range means it can be placed in cold storage or outdoor enclosures without forced heating. Combined with IP65/67 protection, the module mounts directly on-machine, conserving panel space and reducing enclosure costs. Hot-swap support lets you replace this module without powering down the ET 200PRO node — useful for maintaining line uptime during service. Short-circuit protection via exchangeable fuses and reverse polarity protection add robustness against wiring errors in field installation. SYNC, FREEZE, and direct data exchange (slave-to-slave) capabilities allow deterministic cyclic sync across multiple slaves, a standard PROFIBUS DP feature that keeps jitter out of your control loop.
Mounting and integration
The IM154-1 DP is one slot in the ET 200PRO modular system. It requires a separate connecting module (order code 6ES7194-4A.00-0AA0) to attach to the backplane — include that line item in your BOM. Dimensions: 90 mm wide, 130 mm tall, 59.3 mm deep. Automatic transmission rate detection simplifies commissioning: it adapts to the bus baud rate without DIP switch settings. PROFIBUS DP interface is on the front. Isolation between supply voltage and electronics is provided; note that no isolation exists between backplane bus and electronics, so maintain protective earth bonding per Siemens guidelines.
