PROFIBUS DP gateway for ET 200 PRO

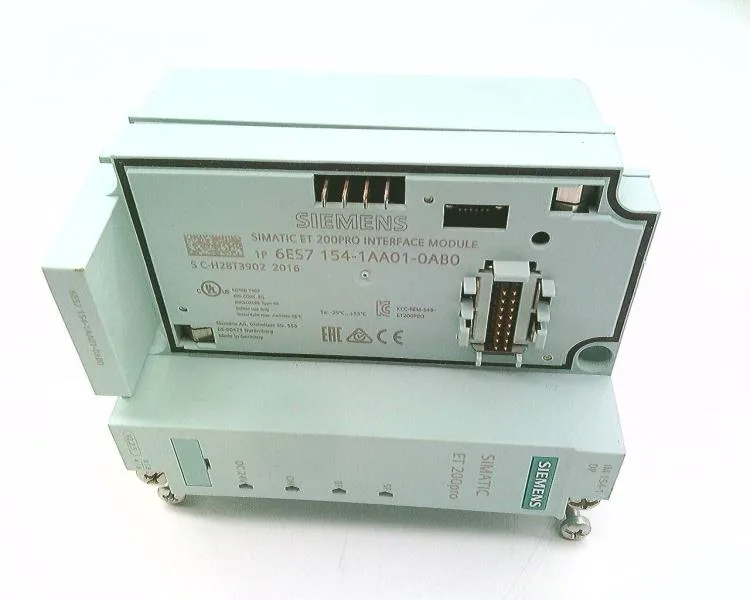

The Siemens 6ES7154-1AA01-0AB0 is the IM 154-1 DP interface module that connects an ET 200 PRO distributed I/O station to a PROFIBUS DP network. It handles 244 bytes of input and 244 bytes of output data, with a maximum transmission rate of 12 Mbit/s and automatic baud rate detection. This module supports DPV1 operation, SYNC and FREEZE capabilities, and direct data exchange (slave-to-slave communication), making it suitable for high-speed cyclic and acyclic data exchange in a distributed control architecture.
Field-mount integration and diagnostics
Rated IP65/67, the IM 154-1 DP is designed for direct machine-mount or field installation without an enclosure — the housing and connectors withstand washdown and dust ingress common in food, beverage, and automotive production lines. Diagnostic and status indicators include a group error SF (red), bus fault BF (red), and supply voltage monitoring ON (green). It supports parameterizable diagnostic alarms, hardware interrupts, and swapping interrupts for event-driven maintenance.
