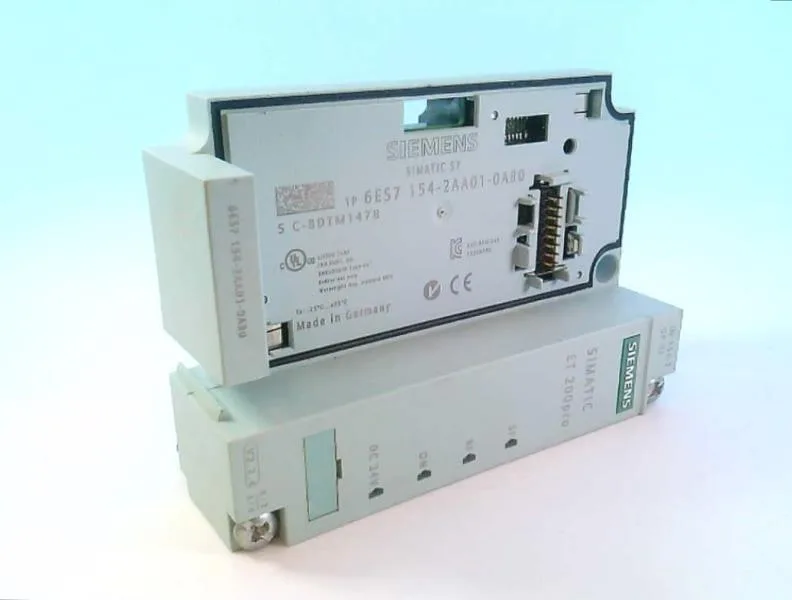

Siemens SIMATIC DP, PROFIBUS DP Interface module IM 154-2 High Feature for ET 200 PRO, 6ES7154-2AA01-0AB0, 12 Mbit/s, IP65/67, -40 to 70 °C.
| Parameter | Value |
|---|---|
| Transmission rate, max. | 12 Mbit/s |
| Parameter | Value |
|---|---|
| Rated value (DC) | 24 V |
| Power loss (typ.) | 5 W |
| Reverse polarity protection | Yes; against destruction |
| Short-circuit protection | Yes; over exchangeable fuses |
| Isolation test voltage | 707 V DC (type test) |
| Parameter | Value |
|---|---|
| Input data area | 244 byte |
| Output data area | 244 byte |
| Parameter | Value |
|---|---|
| Operating temperature, max. | 70 °C |
| Operating temperature, min. | -40 °C |
| IP protection degree | IP65/67 |
| Parameter | Value |
|---|---|
| Width | 90 mm |
| Height | 130 mm |
| Depth | 60 mm |
The 6ES7154-2AA01-0AB0: 12 Mbit/s matches the PROFIBUS DP fast segment; IP65/67 enclosure allows direct machine mounting. Power loss runs 5 W typ from 24 V DC, drawing up to 200 mA from 1L+.
Dimensions 90 x 130 x 60 mm. The termination module and connection module are ordered separately under 6ES7194-4A.00-0AA0. Hot swapping of modules is supported. PROFIBUS DP interface has automatic baud rate detection. Isolation tested at 707 V DC type test.
70 °C.
-40 °C.
