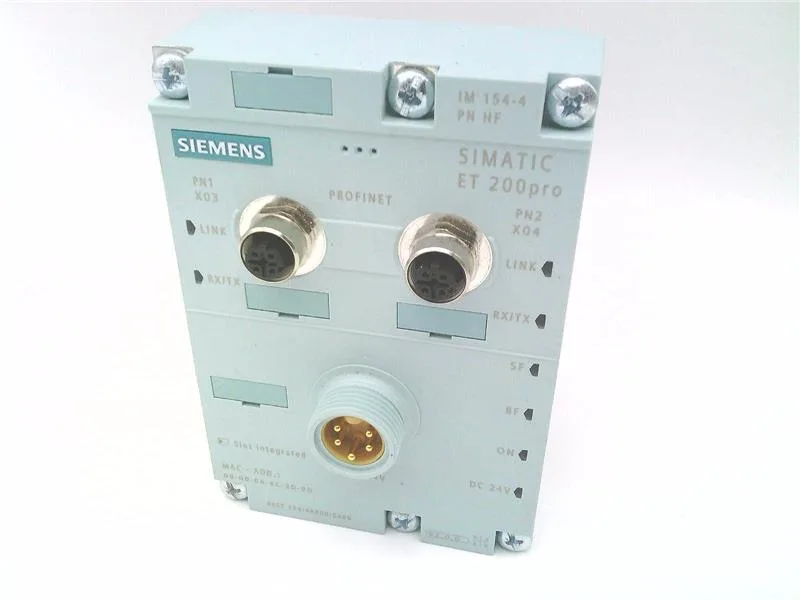

The 6ES7154-4AB00-0AB0: This is the SIMATIC DP IM 154-4 PN — a PROFINET interface module for the ET 200 PRO distributed I/O system. It's built for harsh environments: IP65/67 means you can hose it down, and the -40 to 70 °C range handles cold storage or hot cabinets without complaint. The integrated switch gives you two M12 PROFINET ports plus a 7/8" power connector. Slots into the ET 200 PRO rail and needs a Micro Memory Card to boot.
Key ratings and what they mean for fit
Transmission rate runs 100 Mbit/s full duplex — standard for modern PROFINET lines. ARP, Ping, and SNMP support are baked in, so you can do simple diagnostics without extra tools. Supply voltage is 24 V DC, monitored by a green LED for load voltage and another for 24 V present. Max current draw from the supply is 250 mA, which keeps the power budget tight. Short-circuit protection uses exchangeable fuses; reverse polarity protection prevents destruction if someone crosses wires. Isolation is tested at 500 V DC between backplane bus and electronics, and between supply voltage and electronics. Between different circuits it's rated for 75 V DC/60 V AC. That's plenty for 24 V systems but keep it in mind if you're mixing circuits. Bus fault and group error LEDs (both red) give you immediate status. Load voltage monitoring is green. No guesswork on the panel.
