What it is

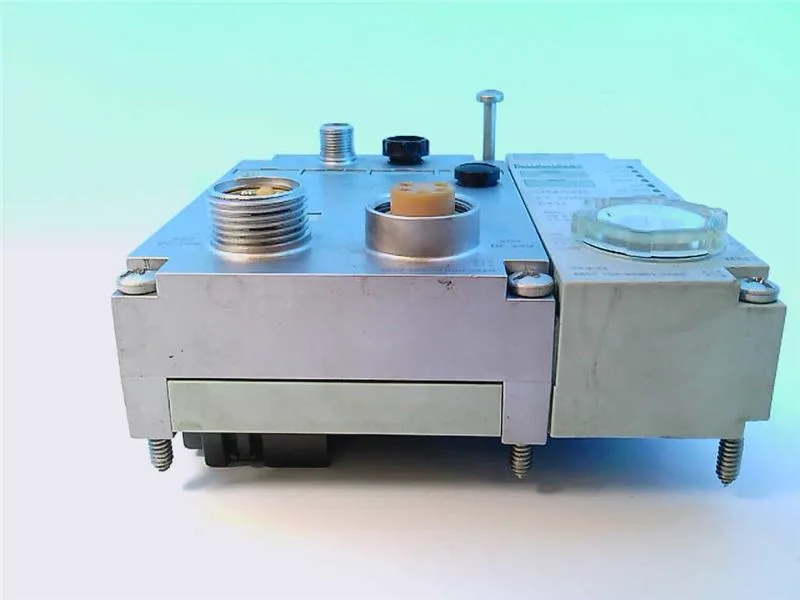

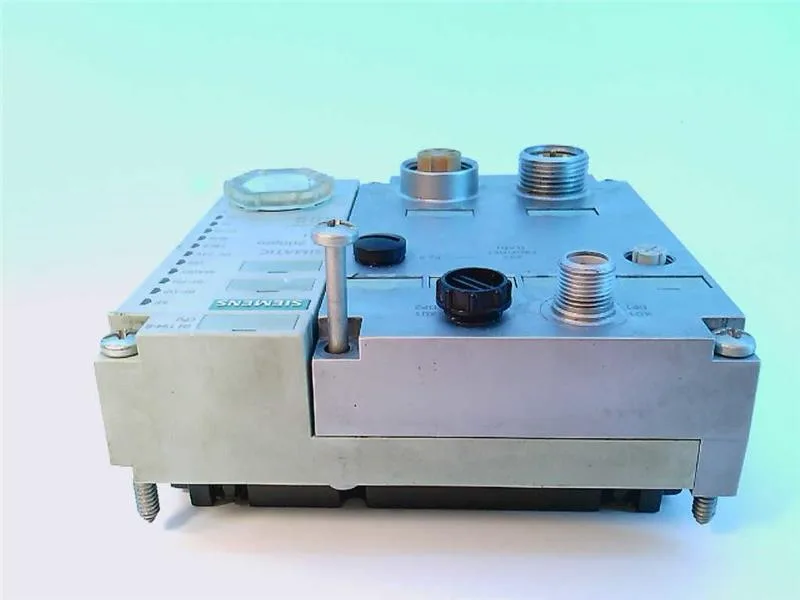

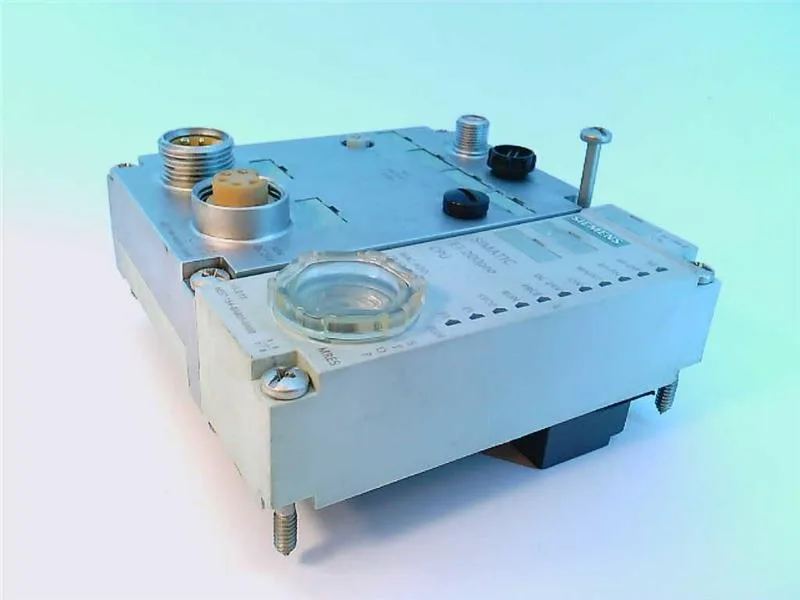

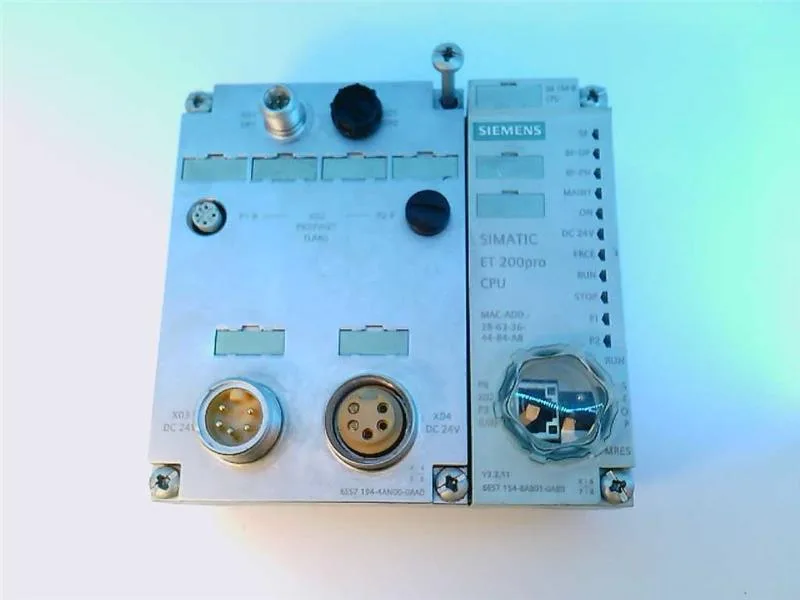

The Siemens 6ES7154-8AB01-0AB0 is an IM 154-8 interface module for the ET 200pro distributed I/O family. It connects remote I/O stations to a PROFINET controller, making it the communication backbone for decentralized field devices. It supports isochronous real-time (IRT) communication, which means deterministic cycle times down to sub-millisecond range for motion or high-speed process applications. This is key if your line requires synchronized I/O with a drive or fast actuator.
Integration and mounting
Physical footprint: 135 mm wide, 130 mm high, 65 mm deep (with RJ45 cover on). The depth reduces to 60 mm without the cover. This fits the standard ET 200pro enclosure; no special DIN-rail adapter needed — the module directly interfaces with the backplane of the I/O station. Galvanic isolation is provided between the interface and the I/O modules (isolated in IM154-8, and in the CM). This protects the backplane from ground potential differences and common-mode voltages often encountered in long cable runs across a plant floor.
Networking and protocols
Talks native PROFINET with IRT — no extra gateway for real-time performance. It also supports UDP via TCP/IP using loadable FBs, and can act as both client and server for UDP. S7 routing is enabled, which simplifies multi-controller network access without additional hardware.
Programming languages
This interface supports a wide range of languages: LAD, FBD, STL, SCL, and GRAPH, plus CFC and HiGraph. That means you can engineer the logic in whatever dialect your team prefers, from ladder for simple sequences to structured text for complex algorithms.
