Fieldbus junction box for hazardous-area loops

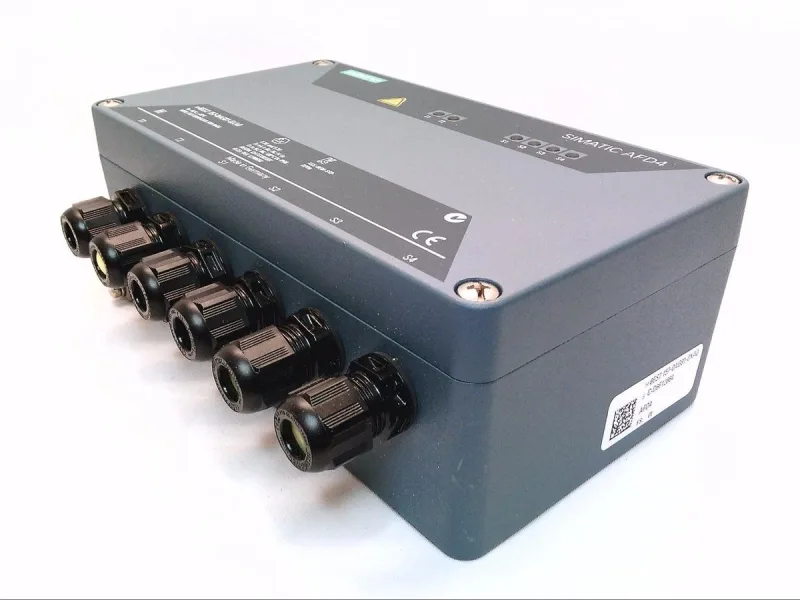

The Siemens 6ES7157-0AG81-0XA0 is an AFD4 field distributor that connects up to four spur instruments to a PROFIBUS PA or FOUNDATION Fieldbus H1 main line. It carries automatic bus termination and reverse-polarity protection when paired with the FDC 157 power conditioner. The enclosure is rated IP66, so it withstands washdown and outdoor exposure directly on the skid or pipe rack.
Hazardous-area approvals and temperature envelope
Rated for ATEX Zone 2 and Zone 22, plus FM Class I Zone 2 / Division 2 — this unit sits in the gas-group and dust-group classified area, not the Zone 1/21 inner boundary. The ambient range spans -40 °C to 85 °C, covering cold-climate outdoor racks and hot-process skids without a heater or sunshade.
Spur line budget and loop power
Each spur line is limited to 60 mA permissible current. The unit draws 264 mA max from the bus, with a typical power loss of 384 mW and a ceiling of 3.2 W.
