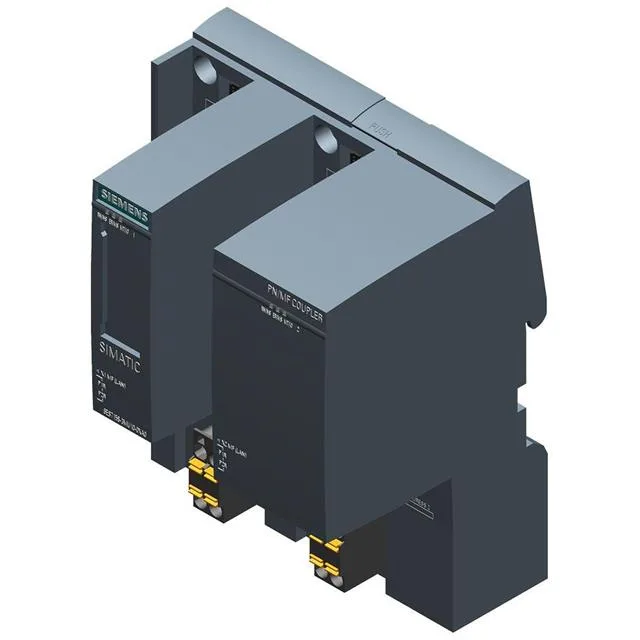

Siemens 6ES7158-3MU10-0XA0 — PLC Communication Modules

6ES7158-3MU10-0XA0 Siemens Interface Module, PROFINET 100Mbp

MPN6ES7158-3MU10-0XA0
Active

Siemens 6ES7158-3MU10-0XA0, PROFINET interface module, 100 Mbit/s, ARP/MRP/LLDP, active production.

$429.26 – $1,181.06Ref. price · indicative, final on quote
Siemens 6ES7158-3MU10-0XA0 datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

6ES7158-3MU10-0XA0 — Identification
ParameterValue
Configurable from STEP 7 TIA Portal versionV16 or higher via HSP of PN/PN coupler V4.2 or higher in compatibility mode
Firmware versionV5.0.1
6ES7158-3MU10-0XA0 — Communication
ParameterValue
TCP/IP supportYes
I&M data supportYes; I&M0 to I&M3
Diagnostics functionYes; Parameterizable
Isochronous modeNo
6ES7158-3MU10-0XA0 — Electrical
ParameterValue
Rated value (DC)24 V
Permissible range, upper limit (DC)28.8 V
Permissible range, lower limit (DC)19.2 V
Current consumption, max.360 mA; for 19.2 V input voltage at the right-hand supply terminal, including 2 plugged BA
Power loss (typ.)4 W; For 24 V input voltage and 2 plugged BA 2x RJ45 If BusAdapters with an optical interface are plugged, there is an additional 750 mW per optical interface (3 W with 2 plugged BA 2x LC)
Reverse polarity protectionYes
Isolation test voltage707 V DC (type test)
6ES7158-3MU10-0XA0 — Environmental
ParameterValue
Operating temperature, max.60 °C; = Tmax for horizontal installation; for vertical installation Tmax = 50 °C
Operating temperature, min.-30 °C; No condensation
6ES7158-3MU10-0XA0 — Mechanical
ParameterValue
Width100 mm
Height117 mm
Depth74 mm; with mounting rail

Product details

PROFINET interface with full diagnostics

The Siemens 6ES7158-3MU10-0XA0 is an interface module for PROFINET networks operating at 100 Mbit/s full duplex (100BASE-TX). It supports ARP, MRP, and LLDP, making it suitable for redundant ring topologies.

Installation and thermal constraints

Mounts on 7.5 or 15 mm DIN rail with a width of 100 mm, height 117 mm, and depth 74 mm including rail. Ambient temperature range from -30 °C to 60 °C horizontally; vertical installation derates maximum to 50 °C. No condensation allowed. This affects panel layout—vertical mounting reduces thermal headroom.

Onboard diagnostics

Onboard diagnostics include IO, MS, NS, RUN, ERROR, MAINT, and LINK LEDs (-), providing quick fault isolation on startup.

Frequently asked questions

What network redundancy protocols does this module support?

It supports ARP, MRP, and LLDP.

What is the I2t rating of this module?

0.031 A²·s.

What is the ambient temperature range for operation?

-30 °C to 60 °C horizontally; vertical installation limits maximum to 50 °C.
