Spare part for PROFIBUS DP legacy lines

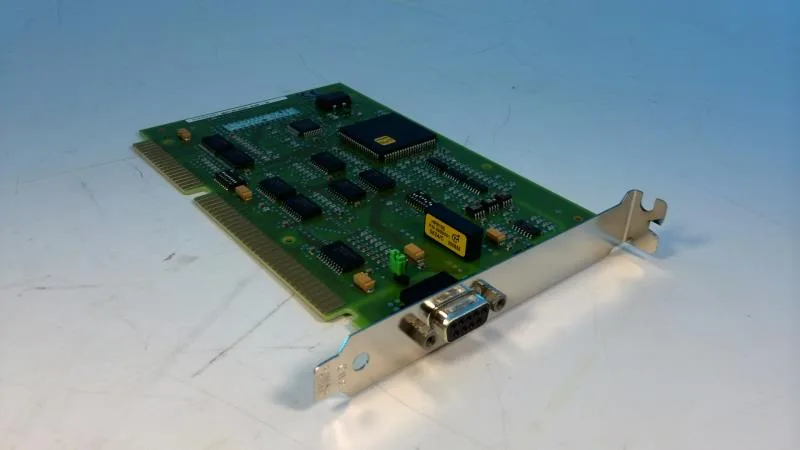

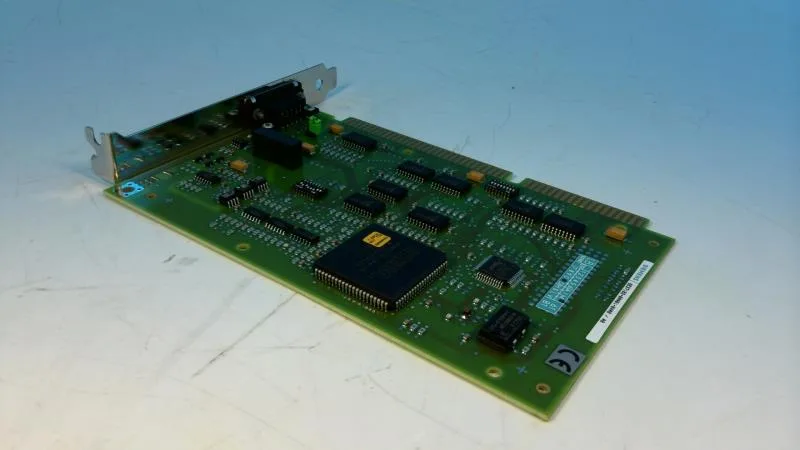

The 6ES7182-0AA01-0XA0: This is the IM 182-1 PC slave board — a spare part for existing SIMATIC DP installations on PROFIBUS DP. Built around the SPC3 ASIC, it communicates at up to 12 Mbit/s. Slotted into a PG/PC, it handles slave applications only; no master functionality. Draws 250 mA at 5 VDC from the host system. Rated for 0 to 60 °C ambient. Lifecycle is current, so this spare remains available through Siemens for repairs and line-down replacements. Not a new-design part — specify it only when maintaining existing equipment.
