The Siemens 6ES7193-0CB30-0XA0 is a spare-part terminal block for the SIMATIC DP ET 200B distributed I/O family. It accepts 24 V DC supply (permissible range 18.5–30 V including ripple) and provides both screw-type (TB2) and spring-loaded (TB4) connections for digital electronic submodules with 3-wire termination.

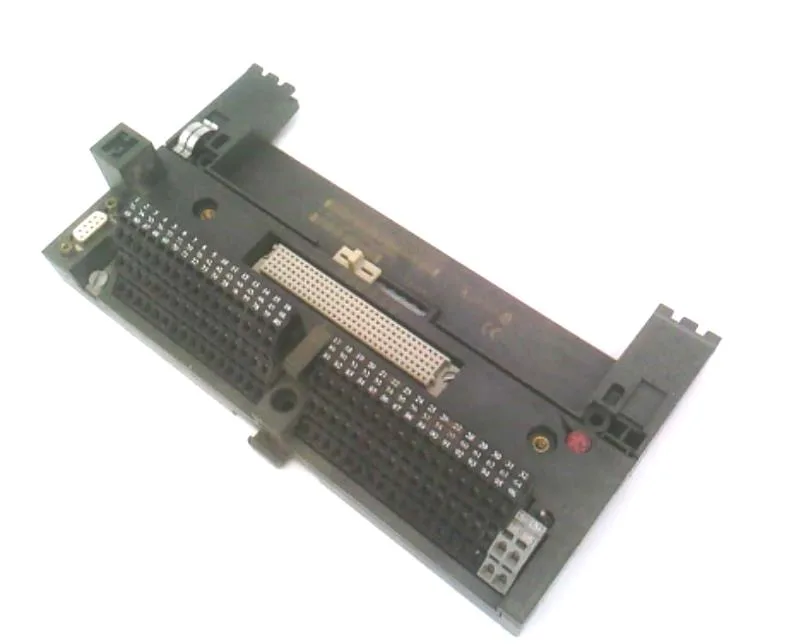

Siemens 6ES7193-0CB30-0XA0 Terminal Block, ET 200B, 24V DC
MPN6ES7193-0CB30-0XA0
Siemens 6ES7193-0CB30-0XA0, SIMATIC DP terminal block, spare part for ET 200B, 24V DC, with screw and spring terminals.
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsListing updated Jun 2026
Specifications
Electrical
| Parameter | Value |
|---|---|
| Rated value (DC) | 24 V |
| Permissible range, upper limit (DC) | 30 V; Ripple included |
| Permissible range, lower limit (DC) | 18.5 V; Ripple included |
| Current consumption, max. | 200 mA |
Environmental
| Parameter | Value |
|---|---|
| Operating temperature, max. | 60 °C |
| Operating temperature, min. | 0 °C |
Mechanical
| Parameter | Value |
|---|---|
| Width | 235 mm |
| Height | 130 mm |
| Depth | 59 mm |
Other specifications
| Parameter | Value |
|---|---|
| Weight, approx. | 800 g |
| Current consumption, typ. | 100 mA |
| Between electronic block and PROFIBUS DP | Yes |
| Design of electrical connection for the inputs and outputs | TB2: screw-type terminals; TB4: spring-loaded terminals |
Product details
Frequently asked questions
What is the DC supply voltage range?
The terminal block is rated 24 V DC with an allowable range of 18.5 V to 30 V, including ripple.
MPN
6ES7193-0CB30-0XA0
