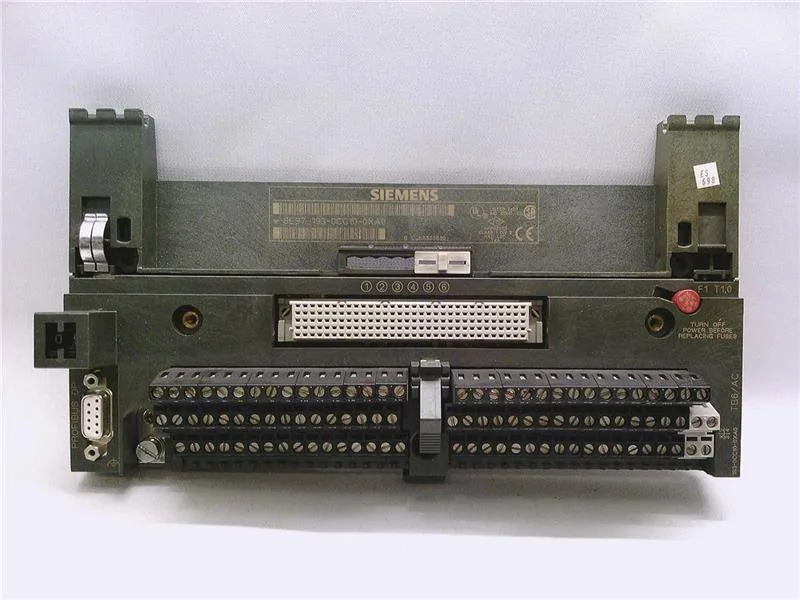

Siemens SIMATIC DP, terminal block TB6/AC for ET 200B digital electronic submodules, 2-wire screw terminals, width 235 mm, AC 120/230 V supply.
| Parameter | Value |
|---|---|
| Current consumption, max. | 210 mA |
| Parameter | Value |
|---|---|
| Operating temperature, max. | 60 °C |
| Operating temperature, min. | 0 °C |
| Parameter | Value |
|---|---|
| Width | 235 mm |
| Height | 130 mm |
| Depth | 59 mm |
| Parameter | Value |
|---|---|
| Weight, approx. | 800 g |
| Rated value | 120/230 V AC |
| Current consumption, typ. | 60 mA |
| Permissible range, lower limit | 85 V; Ripple included |
| Permissible range, upper limit | 264 V; Ripple included |
| Degree of protection acc. to EN 60529 | IP20 |
| Between electronic block and PROFIBUS DP | Yes |
| Design of electrical connection for the inputs and outputs | Screw terminals |
The 6ES7193-0CC10-0XA0: Mount the block in the ET 200B rail assembly; the 235 mm width is the primary footprint constraint – ensure the DIN rail segment and adjacent modules leave that space clear. Screw terminals accept the submodule cables. The 59 mm depth leaves room behind the gland plate. Rated for 0 °C to 60 °C ambient, so verify enclosure temperature for warm-panel placements.
No. The 6ES7148-4FA00-0AB0 is a digital input module (90 mm wide) with a different footprint and function. The TB6/AC terminal block is 235 mm wide and serves as the bus-interface power supply for the ET 200B submodules. It is not a physical or electrical substitute.
