Siemens SIMATIC DP, terminal block TB4-M/DC (ET 200B), 24 V DC, 200 mA, IP20, 235×130×59 mm, 0-60°C, current production.
| Parameter | Value |
|---|---|
| Rated value (DC) | 24 V |
| Permissible range, upper limit (DC) | 30 V; Ripple included |
| Permissible range, lower limit (DC) | 18.5 V; Ripple included |
| Current consumption, max. | 200 mA |
| Parameter | Value |
|---|---|
| Operating temperature, max. | 60 °C |
| Operating temperature, min. | 0 °C |
| Parameter | Value |
|---|---|
| Width | 235 mm |
| Height | 130 mm |
| Depth | 59 mm |
| Parameter | Value |
|---|---|
| Weight, approx. | 800 g |
| Current consumption, typ. | 100 mA |
| Degree of protection acc. to EN 60529 | IP20 |
| Between electronic block and PROFIBUS DP | Yes |
| Design of electrical connection for the inputs and outputs | TB2: screw-type terminals; TB4: spring-loaded terminals |

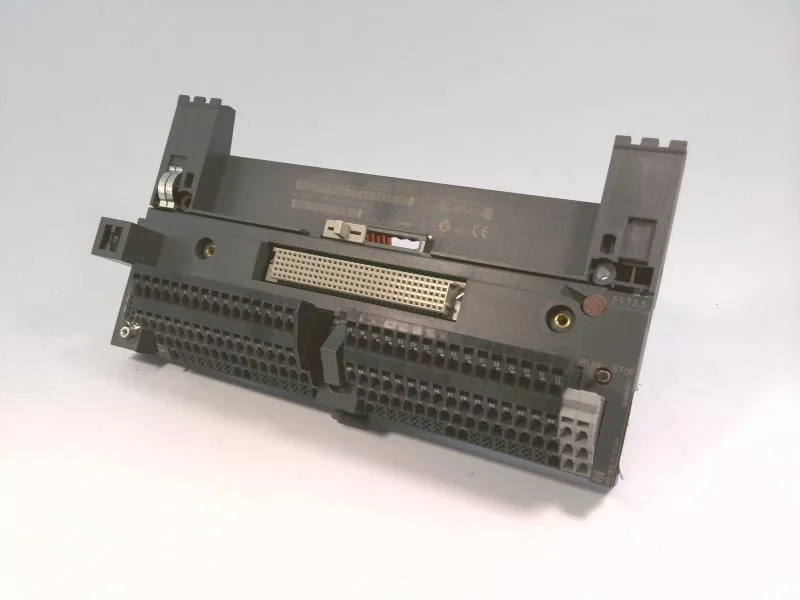

The 6ES7193-0CE30-0XA0: Spare terminal block for the SIMATIC DP ET 200B distributed I/O station. Carries 24 V DC supply to electronic submodules, drawing up to 200 mA from the backplane bus. Mix of screw-type (TB2) and spring-loaded (TB4) terminals for 3-wire inputs/outputs plus an additional frame earth connection. IP20 rated — enclosure only. Ambient temperature range: 0 to 60 °C. No special cooling required in standard industrial enclosures.
Ambient operating range is 0 to 60 °C.
24 V DC nominal, with a permissible range of 18.5 to 30 V DC including ripple. Typical current consumption is 100 mA, maximum 200 mA.
