Dimensions and panel fit
The 6ES7193-1CH00-0XA0: Width 145 mm, depth 40.5 mm define the DIN-rail footprint. Height with the electronics block from the top edge of DIN rail (with bus connector 6ES7972-0CA30-0XA0) is 82 mm. Bare unit is 230 g.

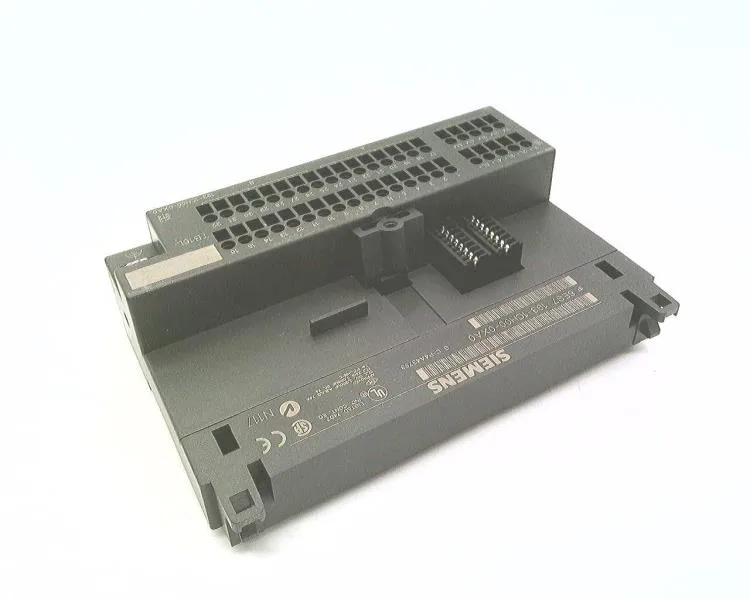

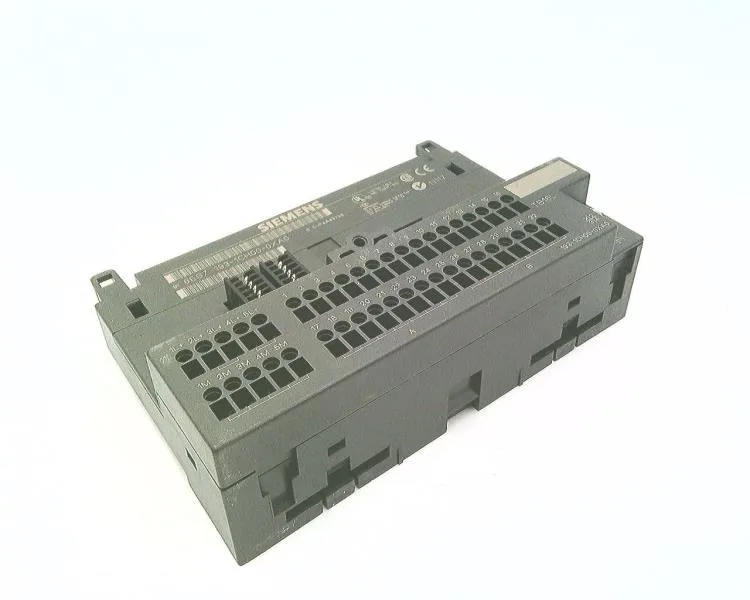

Siemens 6ES7193-1CH00-0XA0 TB16L Terminal Block, 16 Channels
MPN6ES7193-1CH00-0XA0
Siemens 6ES7193-1CH00-0XA0, Simatic DP, TB16L terminal block, 16 channels, screw termination, 145 mm width, 40.5 mm depth, active production.
$53.34Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsListing updated Jun 2026
Specifications
Mechanical
| Parameter | Value |
|---|---|
| Height | 100 mm; Height with electronics block from top edge of DIN rail (with bus connector 6ES7972-0CA30-0XA0): 82 mm |
| Width | 145 mm |
| Depth | 40.5 mm |
| Weight (approx.) | 230 g |
Product details
MPN
6ES7193-1CH00-0XA0
