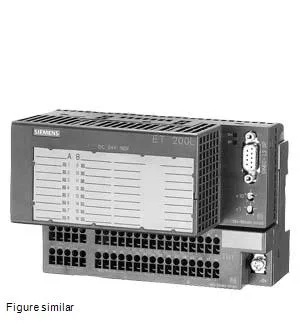

Siemens 6ES7193-1CL10-0XA0 SIMATIC DP, Terminal block TB32L, 32 channels for ET 200L, spring-type, 191 mm width, 40.5 mm depth, current production.
| Parameter | Value |
|---|---|
| Height | 100 mm; Height with electronics block from top edge of DIN rail (with bus connector 6ES7972-0CA30-0XA0): 82 mm |
| Width | 191 mm |
| Depth | 40.5 mm |
| Weight (approx.) | 350 g |

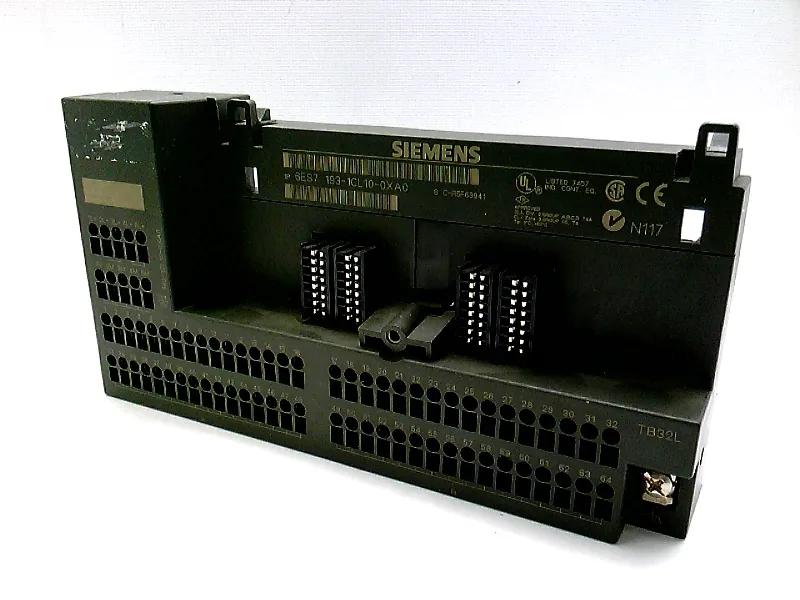

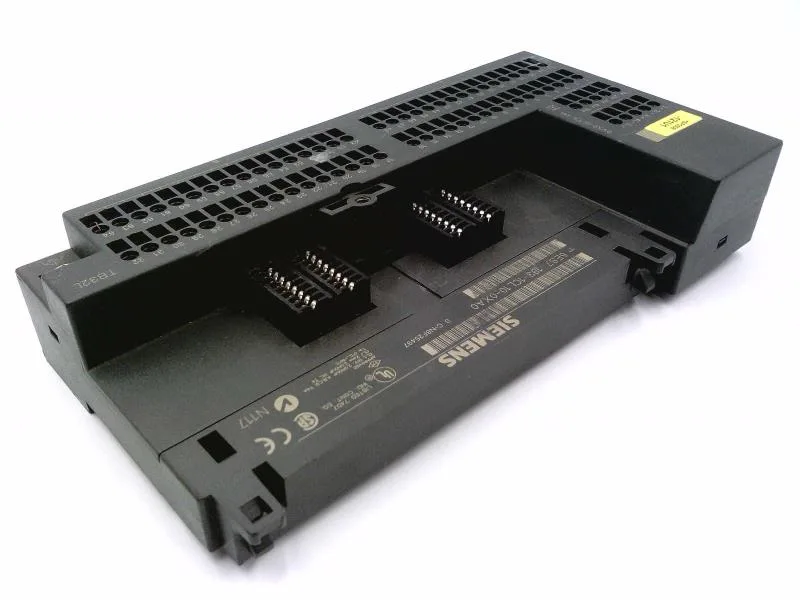

The Siemens 6ES7193-1CL10-0XA0 is the spare-parts terminal block for the ET 200L distributed I/O station — spring-type, 32 channels, marked as current production. At 191 mm wide and 40.5 mm deep, it's a direct dimensional replacement for the original TB32L. If you're swapping one out on site, it'll fit the same DIN rail footprint and wiring pattern.
The TB32L measures 191 mm wide, 40.5 mm deep, and 100 mm tall (82 mm from DIN rail top edge with the bus connector installed). Weight is roughly 350 g.
