Siemens 6ES7193-4CE60-0AA0 — PLC I/O & Expansion Modules

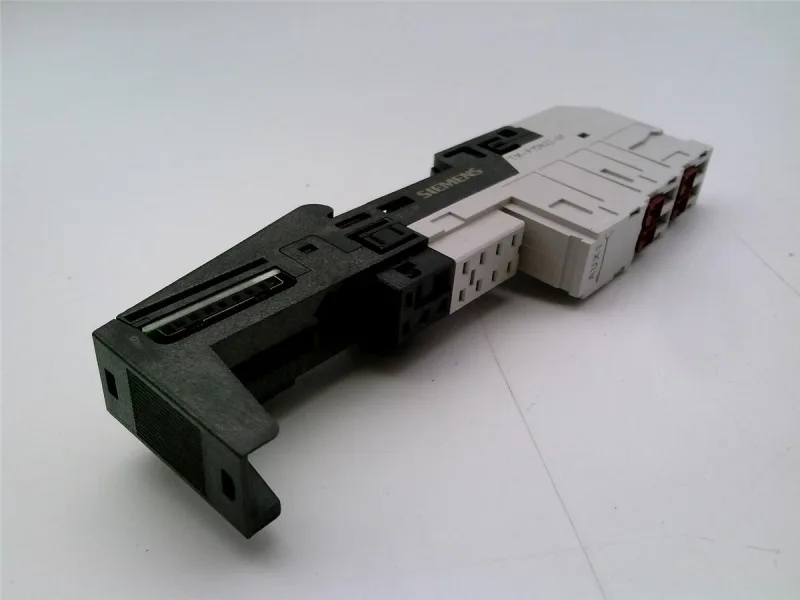

Siemens 6ES7193-4CE60-0AA0 ET 200S Terminal Module, 15 mm

MPN6ES7193-4CE60-0AA0

Siemens SIMATIC DP, Terminal module TM-P15N22-01 for ET 200S, 15 mm width, FastConnect terminal, 2x2 terminal connections, without terminal access to AUX1.

$36.39Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

6ES7193-4CE60-0AA0 — Mechanical
ParameterValue
Height142 mm
Width15 mm
Depth43 mm
Weight (approx.)55 g
6ES7193-4CE60-0AA0 — Other specifications
ParameterValue
Delivery quantity in pieces1

Product details

The 6ES7193-4CE60-0AA0 is the TM-P15N22-01 terminal module for ET 200S power modules. It occupies a 15 mm width on the rail, 142 mm tall, 43 mm deep. The FastConnect terminals handle the 2x2 connections; this variant passes AUX1 continuous through the module without terminal access, so if your wiring plan uses that bus, verify the connection point.

Compared to sibling 6ES7193-4CC30-0AA0, this module stands taller (142 mm vs 132 mm) and lacks AUX1 terminal access. The -CC30 version provides access to AUX1 for wiring; the -CE60 does not.

Mounts onto the ET 200S DIN rail. Ensure the power module is compatible with this TM-P15N22-01 variant.

Frequently asked questions

What are the depth and width of this module?

Depth is 43 mm, width is 15 mm.

Will this module drop into a panel specified for the 6ES7193-4CC30-0AA0 without rewiring?

No. The height difference (142 mm vs 132 mm) may require rail adjustment, and the lack of AUX1 terminal access means any AUX1 wiring cannot be connected at this module. Rewiring or a different module would be needed.
