Siemens 6ES7193-4CF40-0AA0 — PLC I/O & Expansion Modules

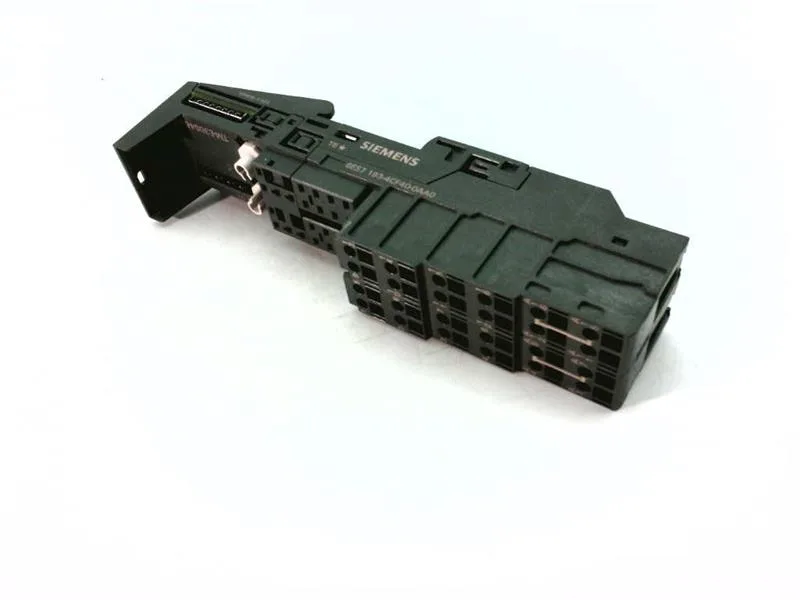

Siemens 6ES7193-4CF40-0AA0 SIMATIC DP TM-E30S46-A1, 30 mm

MPN6ES7193-4CF40-0AA0

Siemens SIMATIC DP terminal module TM-E30S46-A1, 30 mm width, screw terminals, AUX1 continuous, active production.

$42.60Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026

Specifications

6ES7193-4CF40-0AA0 — Mechanical
ParameterValue
Height157 mm
Width30 mm
Depth43 mm
Weight (approx.)158 g
6ES7193-4CF40-0AA0 — Other specifications
ParameterValue
Delivery quantity in pieces1

Product details

The 6ES7193-4CF40-0AA0: The obvious difference is width: 30 mm vs 15 mm on the 6ES7193-4CC30-0AA0. This one gives you the AUX1 continuous rail – so you don't need extra jumpers for auxiliary power across slices. The narrower sibling lacks that continuous bus; you'd need to wire AUX1 separately per module. The 30 mm module also holds 4×6 screw terminals, while the 15 mm version has fewer terminal points. If your panel already cuts out for 15 mm modules, this won't drop in without widening the slot.

Mounting note

Mounts on the standard ET 200S rail. At 157 mm tall, it aligns with other 30 mm modules. AUX1 bus clips into adjacent modules with AUX1 terminals.

MPN
6ES7193-4CF40-0AA0
