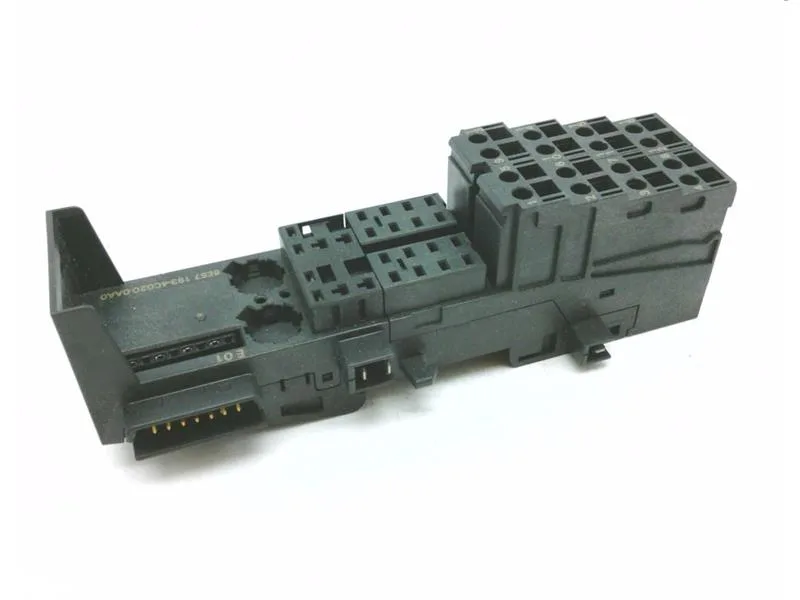

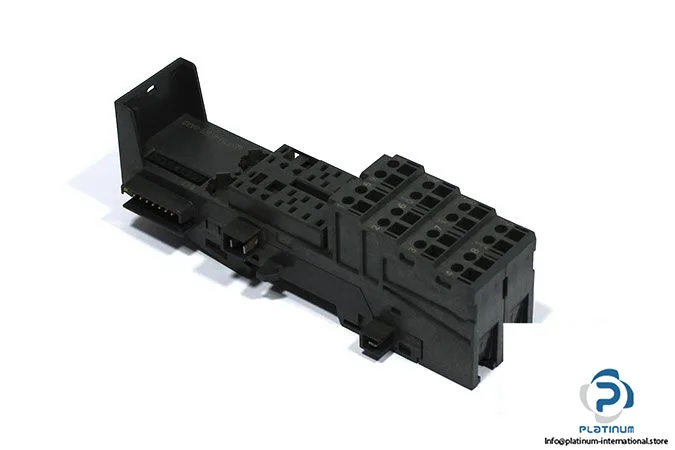

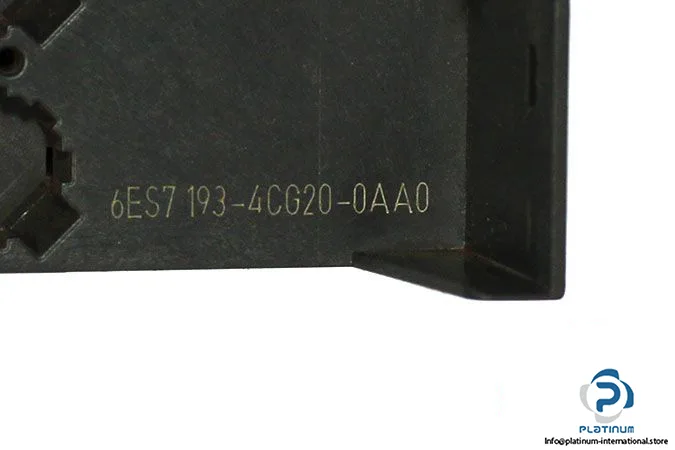

Siemens SIMATIC DP, terminal module TM-E30S44-01, 6ES7193-4CG20-0AA0, 30 mm width, screw terminals, for ET 200S electronic modules.
| Parameter | Value |
|---|---|
| Height | 132 mm |
| Width | 30 mm |
| Depth | 43 mm |
| Weight (approx.) | 125 g |
| Parameter | Value |
|---|---|
| Delivery quantity in pieces | 1 |
The 6ES7193-4CG20-0AA0 is a SIMATIC DP terminal module TM-E30S44-01 for the ET 200S distributed I/O system, occupying a 30 mm slot width with screw terminals for 4×4 terminal connections. It mounts on the ET 200S rail and accepts electronic modules rated for the same 30 mm form factor. The AUX1 bus is continuous; there is no terminal access to AUX1 on this variant, so verify AUX1 routing in the rack.
Alternative models and sibling configurations in the same Siemens series. For obsolete or discontinued parts, these models can serve as compatible replacements or functional alternatives for plant maintenance.
