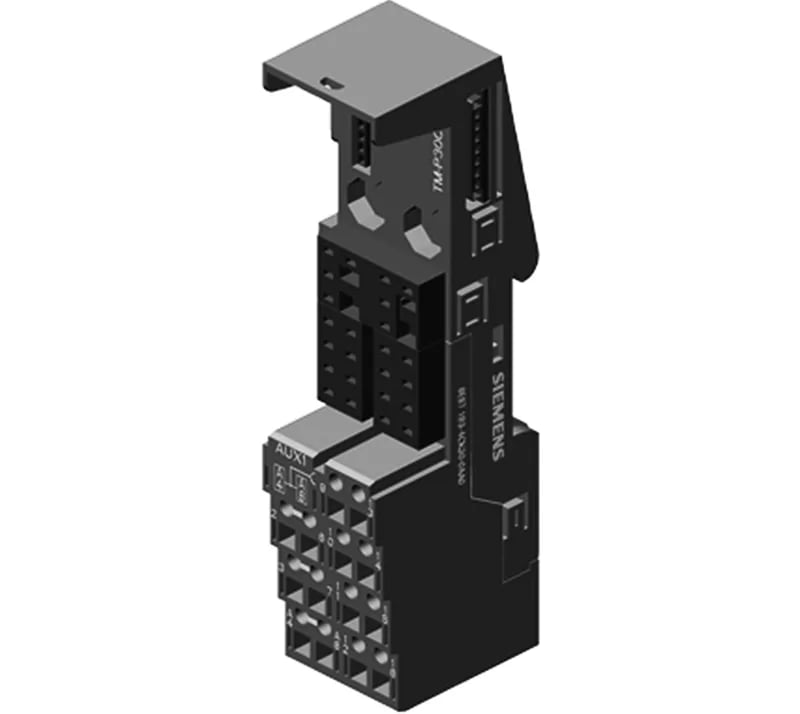

The Siemens 6ES7193-4CK30-0AA0 is a SIMATIC DP terminal module TM-P30C44-A0 designed for the ET200S distributed I/O system, specifically for use with the PM-E F PROFIsafe power module. It provides the physical connection point for the power module and its associated PROFIsafe safety signals, routing power and data through spring-type terminals arranged as 2x3 plus 2x4 connections, with a dedicated terminal access to AUX1 that is interrupted.
DIN-rail footprint and panel fit
At 30 mm wide, 132 mm tall, and 43 mm deep, this module occupies a single slot on the ET200S DIN-rail assembly. The 43 mm depth is the dimension that matters for enclosure depth clearance — standard 80 mm or 100 mm deep enclosures have ample room, but shallow 60 mm panels may require checking the gland-plate clearance behind the rail. Spring-type terminals accept solid or ferruled stranded conductors; the 2x3+2x4 configuration means two rows of three terminals and two rows of four terminals, giving 14 connection points total for the power module wiring.
