Siemens SIMATIC ET 200SP, BusAdapter BA 2xFC, 2x FastConnect connections, 20 mm wide, 59 mm deep, active production.
| Parameter | Value |
|---|---|
| Operating temperature, horizontal install, min. | -30 °C |
| Operating temperature, horizontal install, max. | 60 °C |
| Operating temperature, vertical install, max. | 50 °C |
| Operating temperature, vertical install, min. | -30 °C |
| Parameter | Value |
|---|---|
| Width | 20 mm |
| Height | 69.5 mm |
| Depth | 59 mm |
| Parameter | Value |
|---|---|
| Cu conductors | 100 m |
| Weight, approx. | 53 g |
| Number of PROFINET interfaces | 1 |
| Number of FC (FastConnect) connections | 2 |
| Installation altitude above sea level, max. | 5 000 m; restrictions for installation altitudes > 2 000 m, see ET 200SP system manual |

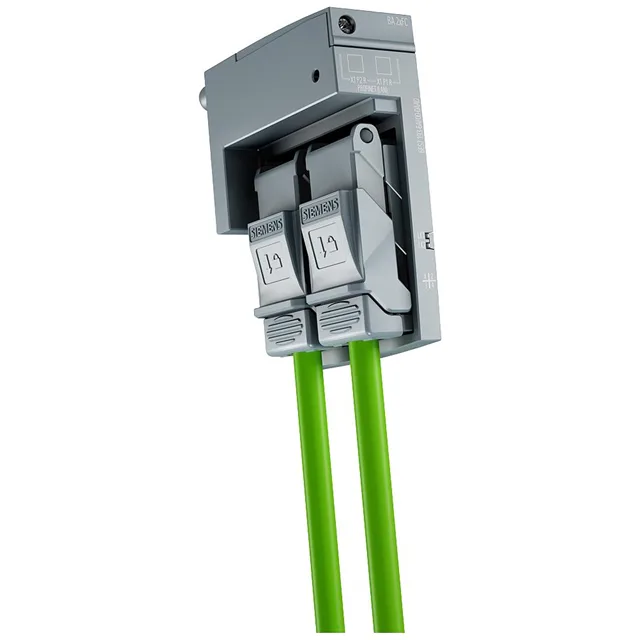

The Siemens 6ES7193-6AF00-0AA0 is a SIMATIC ET 200SP BusAdapter BA 2xFC, providing two FastConnect PROFINET connections for a distributed I/O station. It mounts on the interface module of an ET 200SP system, occupying a 20 mm wide slot and extending 59 mm in depth. Rated for vertical installation from -30 °C to 50 °C and horizontal installation from -30 °C to 60 °C. Maximum installation altitude is 5 000 m; restrictions above 2 000 m — see system manual.
The depth is 59 mm.
The width is 20 mm.
