Key ratings at a glance

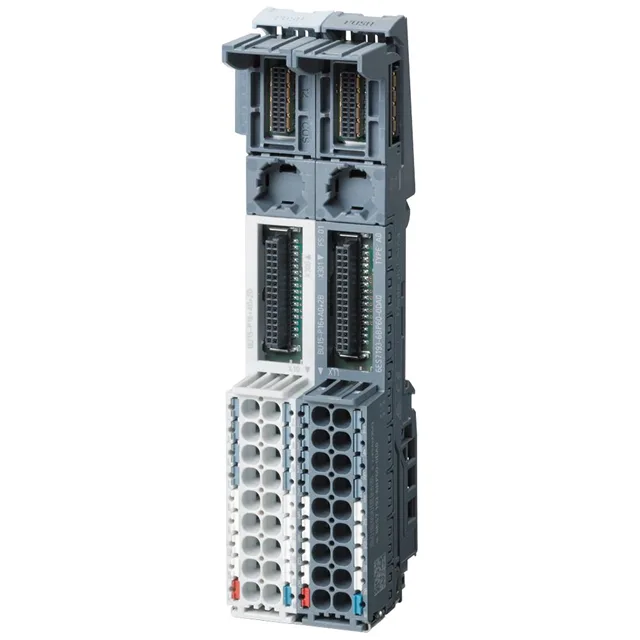

The 6ES7193-6BP60-0DA0: The and bus bars carry up to 10 A through the base unit; the 16 process terminals feeding the I/O module are limited to 2 A total. Keep that process supply separate for high-current loads — the bus current is for module communication, not load power. Isolation tested at 707 V DC, so it holds off channel-to-backplane faults in an industrial setting. Temperature range depends on mount orientation: horizontal installs up to 60 °C, vertical up to 50 °C. Minimum is -30 °C either way. For altitudes above 2 000 m, derating rules apply per the manual; the hardware functional status must be FS03 or later.
Sourcing and supply
Listed as active in production. Standard lead time applies through our distribution channel; quote to order against a BOM line or a line-down need.
