What it is and why the rating matters

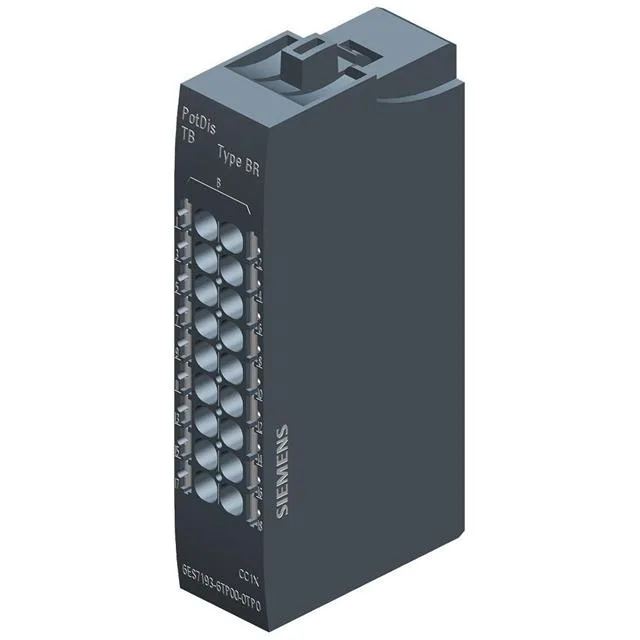

The Siemens 6ES7193-6TP00-0TP0 is a potential distributor module for the SIMATIC ET 200SP distributed I/O system. It provides 18 internally bridged push-in terminals that distribute the same supply potential to multiple I/O modules in a slice, eliminating the need to daisy-chain individual wires. Rated for 10 A on the / bus and process terminals, this module handles the full current draw of a typical ET 200SP slice — think a row of digital output modules driving valves or contactors. The 10 A rating is the package limit; Siemens recommends a 10 A miniature circuit breaker with type B or C characteristic on the supply lines. The push-in terminals accept 0.14 mm² to 2.5 mm² conductors (1.5 mm² with ferrule), covering standard control wiring from signal-level to 24 VDC power distribution.
Deployment context: panel integration
This module snaps onto the ET 200SP DIN-rail bus adapter alongside I/O modules. At 15 mm wide and 34 mm deep, it adds negligible footprint to the slice — a key consideration when filling a cabinet with multiple ET 200SP stations. The 74 mm height matches the standard ET 200SP form factor, so it aligns with adjacent modules on the rail. Horizontal installation is rated for ambient temperatures up to 60 °C; vertical installation derates to 50 °C maximum. Minimum ambient is -30 °C in either orientation. At altitudes above 2 000 m, derating per the manual applies, up to a maximum of 5 000 m.
Lifecycle and sourcing reality
Sourced and quoted to order against an RFQ through independent distribution. Availability and current pricing confirmed at quote time. No second-source exists for this exact form factor and terminal count within the ET 200SP family; the 5SL6006-7 and 5SY4140-7 are miniature circuit breakers, not functional substitutes.
