What the 10 A P1/P2 bus rating means for your ET 200SP slice

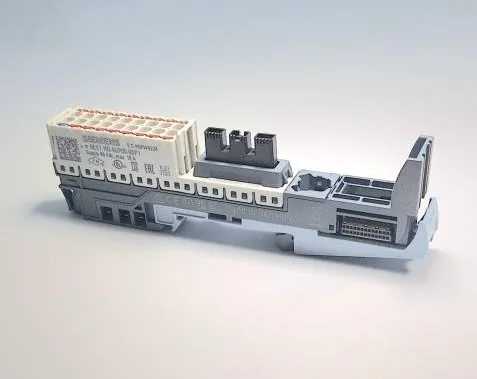

The 6ES7193-6UP00-0DP1 is a potential distributor base unit for the Siemens ET 200SP distributed I/O system. It creates a new potential group, meaning the P1 and P2 bus rails are disconnected from the left neighbor, letting you run a separate 48 V supply (max 10 A) for a group of I/O modules downstream. The 10 A rating on the P1 and P2 bus and the 48 V max supply voltage define the power budget for the downstream modules in that potential group. If your downstream I/O slice draws more than 10 A total, you need another potential distributor further down the rail.
Push-in termination and panel fit
The 15 mm width and 35 mm depth mean it occupies a single slot on the ET 200SP mounting rail, leaving room for adjacent I/O modules. The 117 mm height matches the standard ET 200SP form factor. The module provides 17 terminals connected to P1 potential and 1 terminal to P2 potential. The AUX rail is not connected through this base unit — the potential group is isolated from the left neighbor, so you bring in fresh P1 and P2 supply wires at this point.
