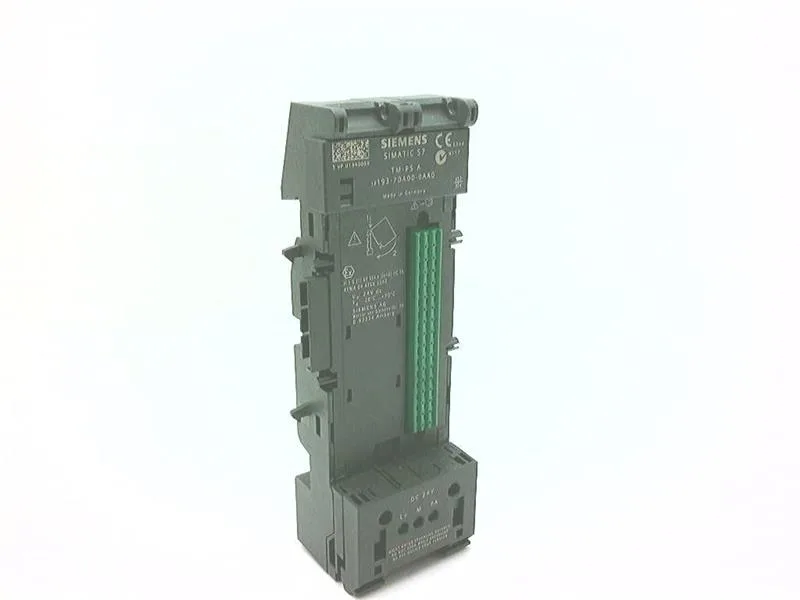

The Siemens 6ES7193-7DA00-0AA0 is the terminal module TM-PS-A for the ET200iSP – the piece that holds your power supply in an explosive-gas-rated panel. It measures 52 mm deep, 60 mm wide, and 190 mm tall – that's the slotted profile that drops into the ET200iSP backplane. Certified under KEMA 04 ATEX 2242, rated II2 G (1) GD EEx de[ia/ib] IIC T4. That's for Zone 2 gas and dust atmospheres.
Siemens 6ES7193-7DA00-0AA0 Terminal Module, 52 mm, ATEX
MPN6ES7193-7DA00-0AA0
Siemens SIMATIC DP 6ES7193-7DA00-0AA0 Terminal Module TM-PS-A, 52x60x190 mm, ATEX certified.
$99.06Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsListing updated Jun 2026
Specifications
Mechanical
| Parameter | Value |
|---|---|
| Height | 190 mm |
| Width | 60 mm |
| Depth | 52 mm |
| Weight (approx.) | 235 g |
Approvals
| Parameter | Value |
|---|---|
| CE mark | Yes |
Other specifications
| Parameter | Value |
|---|---|
| Test number KEMA | 04 ATEX 2242 |
| Type of protection acc. to EN 50020 (CENELEC) | II2 G (1) GD EEx de[ia/ib] IIC T4 |
Product details
Frequently asked questions
What certifications does this part carry?
CE mark and KEMA ATEX certification (04 ATEX 2242) for Zone 2 explosive gas and dust atmospheres: II2 G (1) GD EEx de[ia/ib] IIC T4.
MPN
6ES7193-7DA00-0AA0
