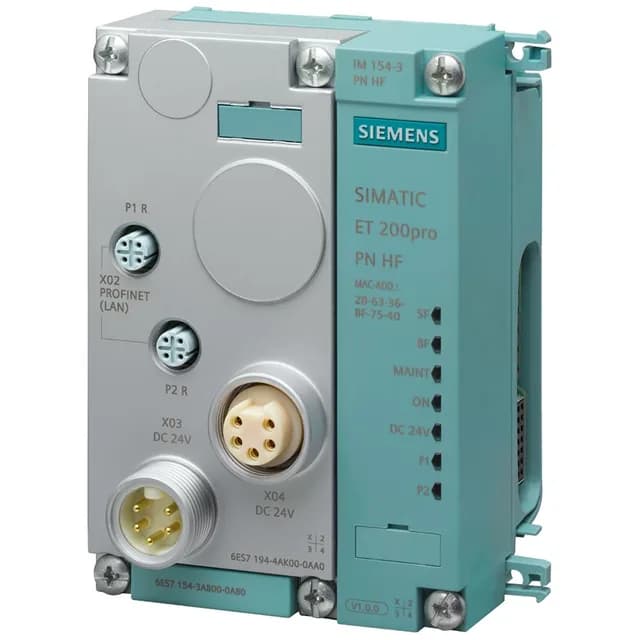

Siemens SIMATIC DP, 6ES7194-4AK00-0AA0, connection module for PROFINET interface module ET 200 PRO IM154-3 PN HF, M12 7/8", 2x M12 and 2x 7/8", active production.
| Parameter | Value |
|---|---|
| Series | Ordering Data Overview |
| REACH art. 33 duty to inform according to the current list of candidates | Lead CAS-No. 7439-92-1 > 0,1 % (w / w) |
| Packaging dimensions (L x w x h) | 14.1 x 6.5 x 6.5 cm |
| Compliance with the substance restrictions according to RoHS directive | Since: 31-07-17 |
| Group code | R135 |
| Product group | 4057 |
| Product class | A: Standard product which is a stock item could be returned within the returns guidelines/period. |
| Quantity unit | 1 Piece |
| Packaging quantity | 1 |
| Export control regulations | AL : N / ECCN : N |
The 6ES7194-4AK00-0AA0 is a SIMATIC DP connection module that mates to the ET 200 PRO IM154-3 PN HF interface module. It provides two M12 PROFINET ports and two 7/8" power/data connectors — the exact complement for a single PROFINET drop in the decentralized I/O system.
Connects to ET 200 PRO IM154-3 PN HF with two M12 and two 7/8" connectors.
Group code R135, product group 4057.
