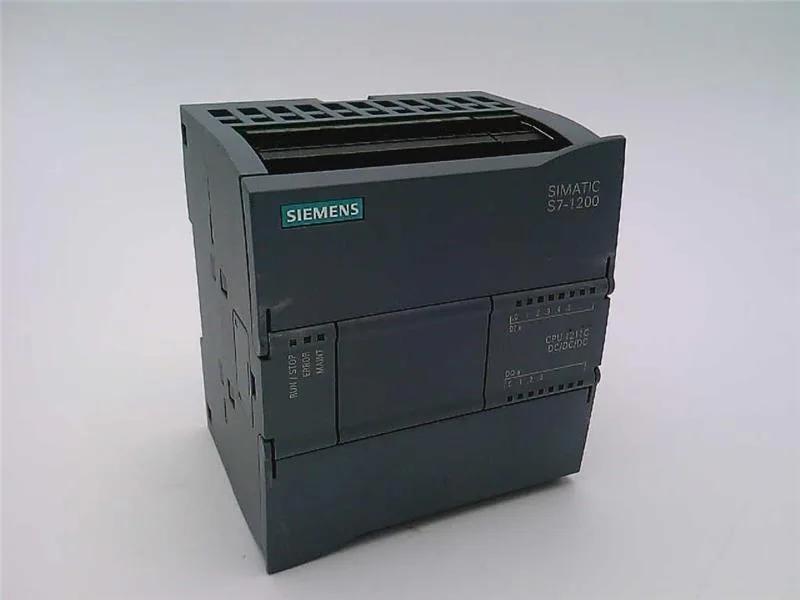

Siemens 6ES7211-1AD30-0XB0 — PLCs (Programmable Logic Controllers)

6ES7211-1AD30-0XB0 Siemens S7-1200 CPU 1211C, -40 to 70°C

MPN6ES7211-1AD30-0XB0

Siemens S7-1200 CPU 1211C DC/DC/DC, 6ES7211-1AD30-0XB0, 24V DC supply (20.4-28.8V), PROFINET onboard, programming in LAD/FBD/SCL, temperature range -40 to 70°C.

$232.00 – $378.05Ref. price · indicative, final on quote

Add to RFQ

Siemens 6ES7211-1AD30-0XB0 datasheet (PDF)

Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

6ES7211-1AD30-0XB0 — I/O
Parameter	Value
Digital inputs	6; Integrated
Digital outputs	4
Input data area	1 024 byte
Output data area	1 024 byte

6ES7211-1AD30-0XB0 — Processor & Memory
Parameter	Value
Execution time, bit operations (typ.)	0.1 µs; / Operation
Execution time, word operations (typ.)	12 µs; / Operation
Execution time, floating-point arithmetic (typ.)	18 µs; / Operation
Size, max.	4 kbyte; Size of bit memory address area

6ES7211-1AD30-0XB0 — Programming
Parameter	Value
Programming language: FBD	Yes
Programming language: LAD	Yes
Programming language: SCL	Yes

6ES7211-1AD30-0XB0 — Electrical
Parameter	Value
Rated value (DC)	24 V
Current consumption (rated)	300 mA; Typical
Permissible range, lower limit (DC)	20.4 V
Permissible range, upper limit (DC)	28.8 V
Power loss (typ.)	8 W
Short-circuit protection	No; to be provided externally

6ES7211-1AD30-0XB0 — Environmental
Parameter	Value
Temperature, min.	-40 °C
Temperature, max.	70 °C
Operating temperature, min. (horizontal mounting)	0 °C
Operating temperature, max. (horizontal mounting)	55 °C

6ES7211-1AD30-0XB0 — Mechanical
Parameter	Value
Width	90 mm
Height	100 mm
Depth	75 mm
Weight (approx.)	370 g

6ES7211-1AD30-0XB0 — Communication
Parameter	Value
Interface type	PROFINET

Product details

Programming and logic

The 6ES7211-1AD30-0XB0: Three IEC languages onboard: LAD, FBD, and SCL. Supports forcing and online variable monitoring over all inputs, outputs, memory bits, DBs, timers, and counters. The project stores in EEPROM without battery backup intervention.

PROFINET onboard, no fieldbus surprises

Interface is PROFINET with TCP/IP and server capability. No PROFIBUS, no MODBUS, no AS-Interface, no PROFIsafe. If your network rides on one of those, this isn't the CPU. Autocrossing is supported, so standard patch cables work.

Carries cULus, FM, and CE mark. That's the documentation package for most plant acceptance and equipment declarations.
