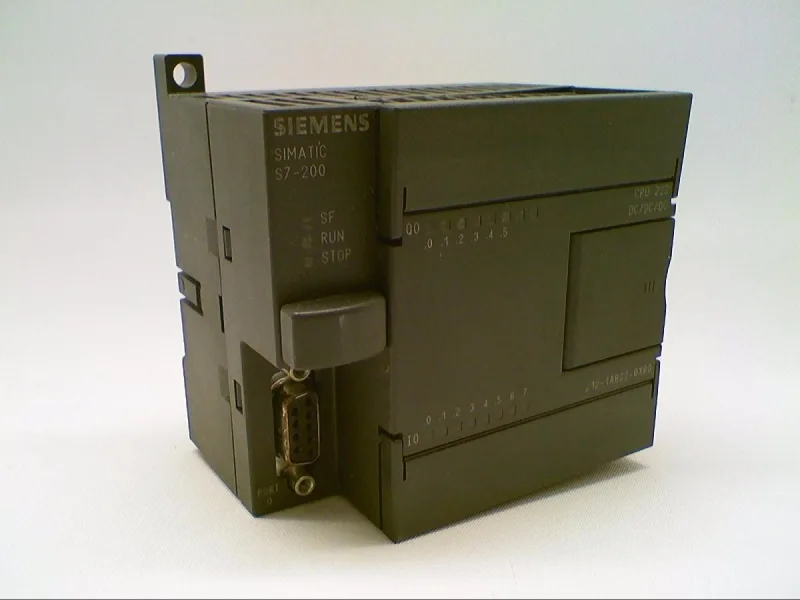

The 6ES7212-1AB22-0XB0: Its 24 V DC supply accepts 15.4 to 28.8 V, so it rides through the voltage dips common in control panels fed by long cable runs or battery-backed supplies.
Key ratings for fit
Program and critical data are retained maintenance-free on integral EEPROM; current values in DB 1, memory bits, timers, and counters are buffered via a high-performance capacitor for up to 50 h (min. 8 h at 40 °C). An optional battery module extends that to 200 days — useful for seasonal or remote installations where power loss frequency is low. Four high-speed counters (30 kHz each, 32-bit) can handle incremental encoders with two 90° offset pulse trains at up to 20 kHz, enabling direct connection to position feedback without a separate counter module. The RS 485 port supports MPI (up to 187.5 kbit/s) and PPI (9.6/19.2/187.5 kbit/s) protocols for communication with operator panels and other S7-200 CPUs.
Sourcing and lifecycle
For new designs, verify that the S7-200 platform still meets your performance and memory requirements; if you are retrofitting an existing S7-200 system, this exact order code replaces the same CPU in service. Quoted to order against a firm RFQ with lead time confirmed at quote.
