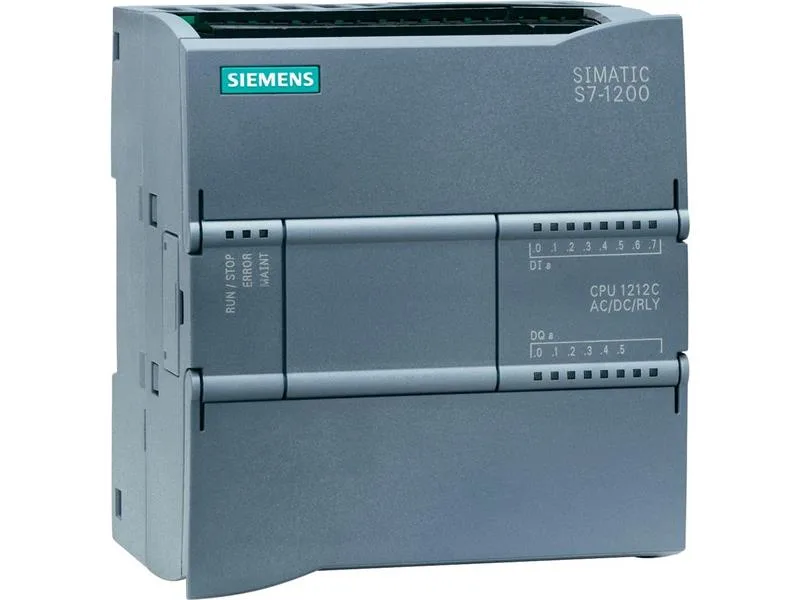

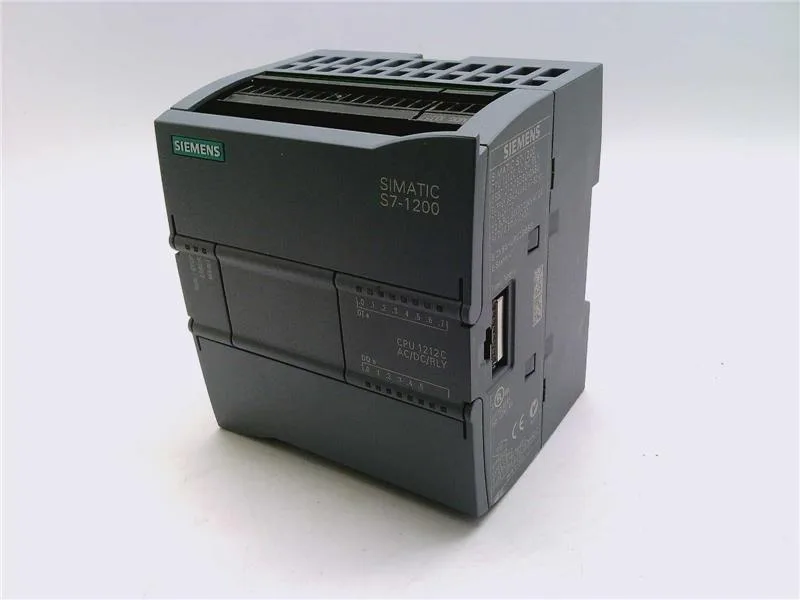

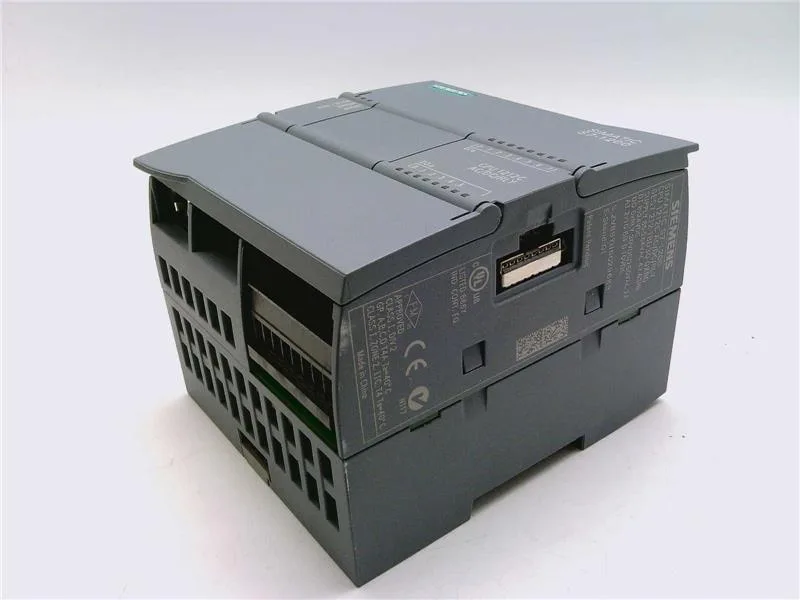

Siemens 6ES7212-1BD30-0XB0 — PLCs (Programmable Logic Controllers)

Siemens 6ES7212-1BD30-0XB0 CPU, PROFINET, -40..70°C

MPN6ES7212-1BD30-0XB0

Siemens S7-1200 CPU 1212C, 6ES7212-1BD30-0XB0, PROFINET interface, 24 V DC, FBD/LAD/SCL, -40 to 70 °C, 1 Mbyte load memory.

$217.17 – $309.00Ref. price · indicative, final on quote

Add to RFQ

Siemens 6ES7212-1BD30-0XB0 datasheet (PDF)

Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

6ES7212-1BD30-0XB0 — I/O
Parameter	Value
Digital inputs	8; Integrated
Digital outputs	6; Relays
Input data area	1 024 byte
Output data area	1 024 byte

6ES7212-1BD30-0XB0 — Processor & Memory
Parameter	Value
Execution time, bit operations (typ.)	0.1 µs; / Operation
Execution time, word operations (typ.)	12 µs; / Operation
Execution time, floating-point arithmetic (typ.)	18 µs; / Operation
Size, max.	4 kbyte; Size of bit memory address area

6ES7212-1BD30-0XB0 — Programming
Parameter	Value
Programming language: FBD	Yes
Programming language: LAD	Yes
Programming language: SCL	Yes

6ES7212-1BD30-0XB0 — Electrical
Parameter	Value
Rated value (DC)	24 V
Current consumption (rated)	80 mA at 120 V AC; 40 mA at 240 V AC
Permissible range, lower limit (DC)	5 V
Permissible range, upper limit (DC)	250 V
Power loss (typ.)	11 W
Short-circuit protection	No; to be provided externally

6ES7212-1BD30-0XB0 — Environmental
Parameter	Value
Temperature, min.	-40 °C
Temperature, max.	70 °C
Operating temperature, min. (horizontal mounting)	0 °C
Operating temperature, max. (horizontal mounting)	55 °C

6ES7212-1BD30-0XB0 — Mechanical
Parameter	Value
Width	90 mm
Height	100 mm
Depth	75 mm
Weight (approx.)	425 g

6ES7212-1BD30-0XB0 — Communication
Parameter	Value
Interface type	PROFINET

Product details

The 6ES7212-1BD30-0XB0: PROFINET controller with 1 Mbyte of integrated load memory, supporting FBD, LAD, and SCL programming. The 24 V DC supply range (20.4 to 28.8 V) and -40 to 70 °C ambient make it a fit for unheated cabinets or outdoor enclosures. CE and cULus listed; FM approved for hazardous locations.

Integration notes

Mounts on standard DIN rail, 90 × 100 × 75 mm. The PROFINET interface includes autocrossing and acts as a server for TCP/IP communications. No onboard PROFIBUS or AS-Interface; fieldbus access requires an external gateway. Backup time 240 h typical for the entire project stored in integral EEPROM. Address space of 1 024 bytes each for inputs and outputs, with dynamically configurable overall station limit of 15. Forcing is supported for commissioning.
